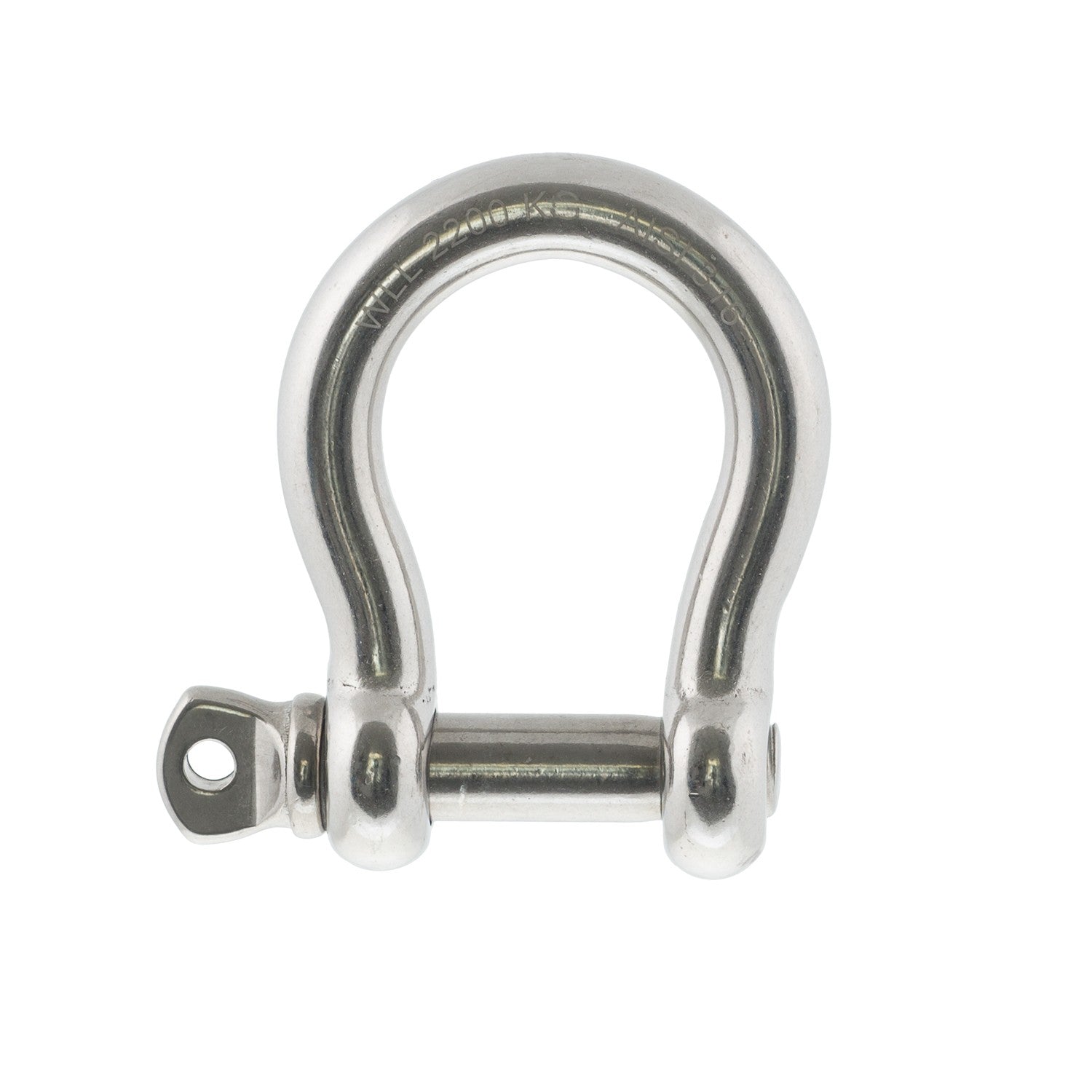

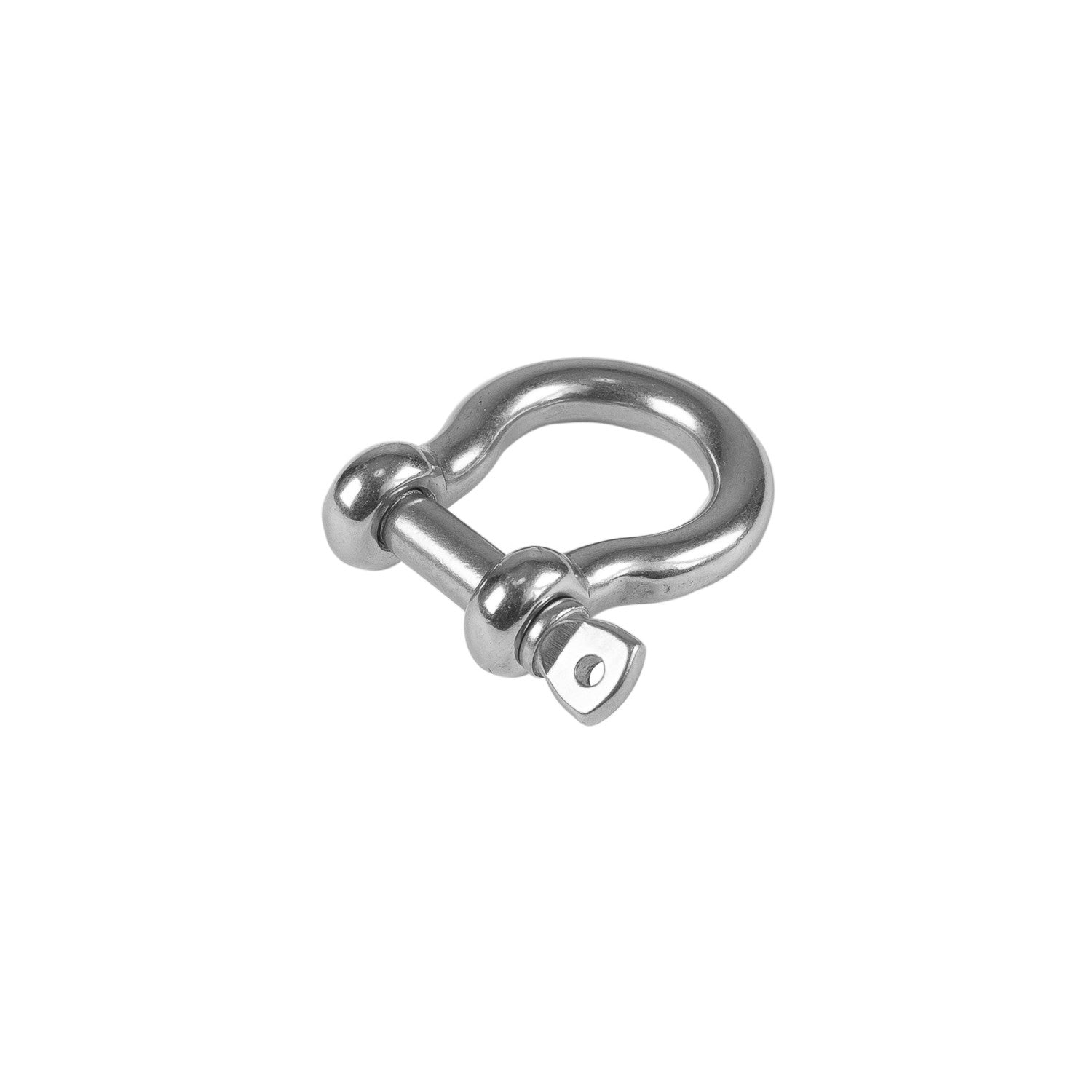

Stainless steel Bow Shackle
Our STAINLESS STEEL BOW SHAKLE is your universal connector for almost any SLACKLINE, TRICKLINE, HIGHLINE or LONGLINE activity.

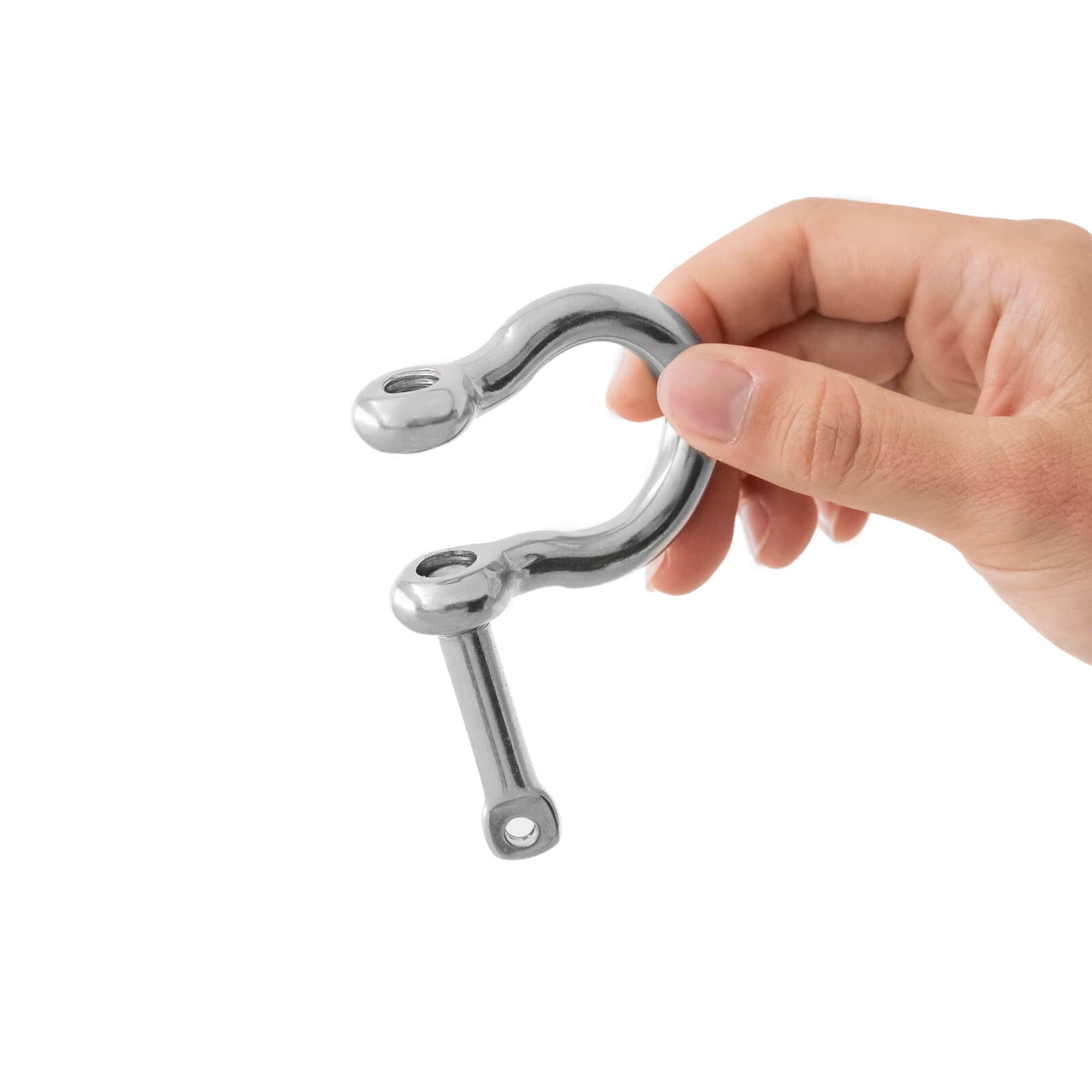

Its bow shape allows you to use it for tri-loading situations and it includes a CAPTIVE PIN, once unscrewed, the unlosable pin stays blocked inside the shackle body. No more risks of losing or dropping it.
Stainless steel shackle into SOFT RELEASE

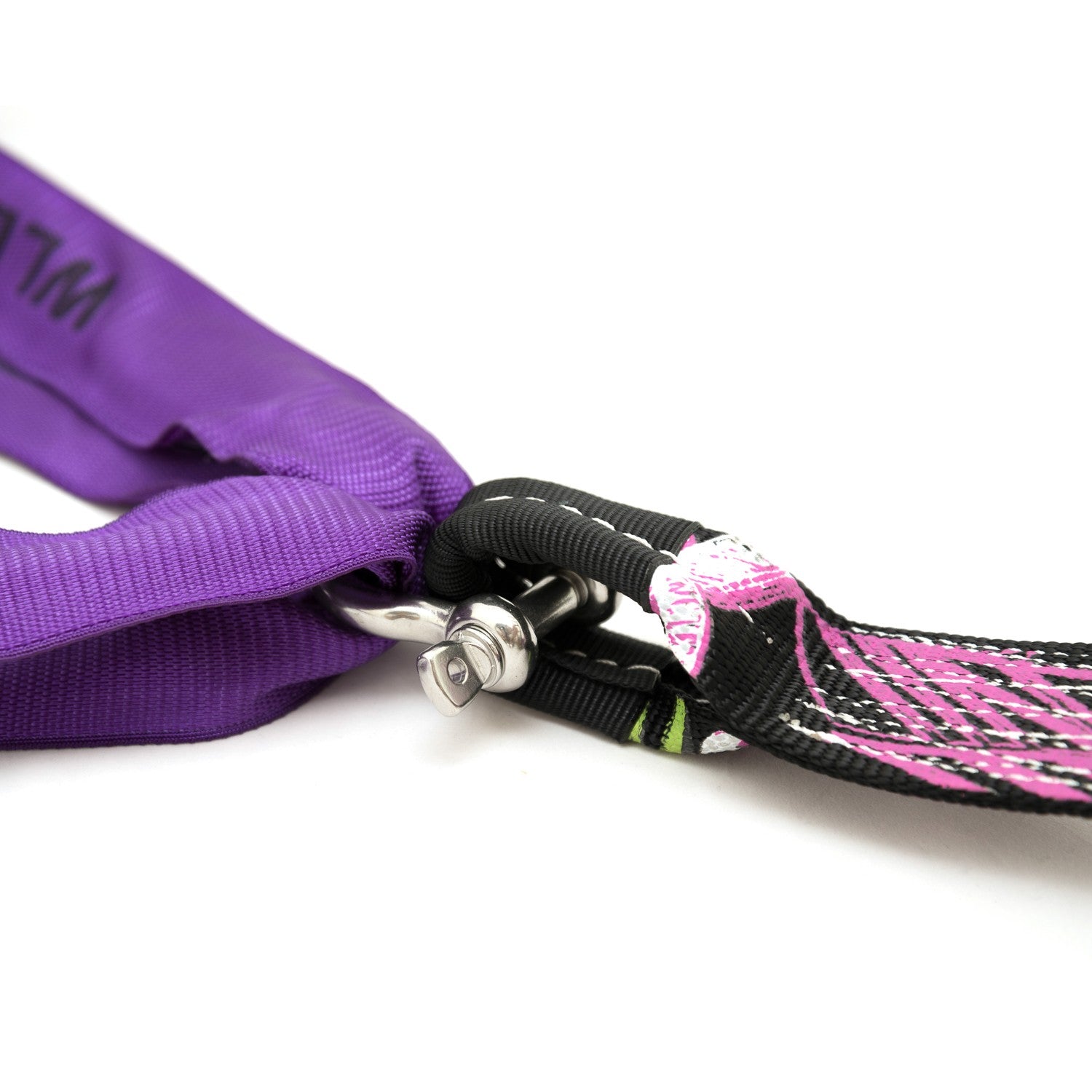

The bow shackle serves mostly between an anchor point (SLING linked to a tree) and a tensioning system (ratchet or pulley system).

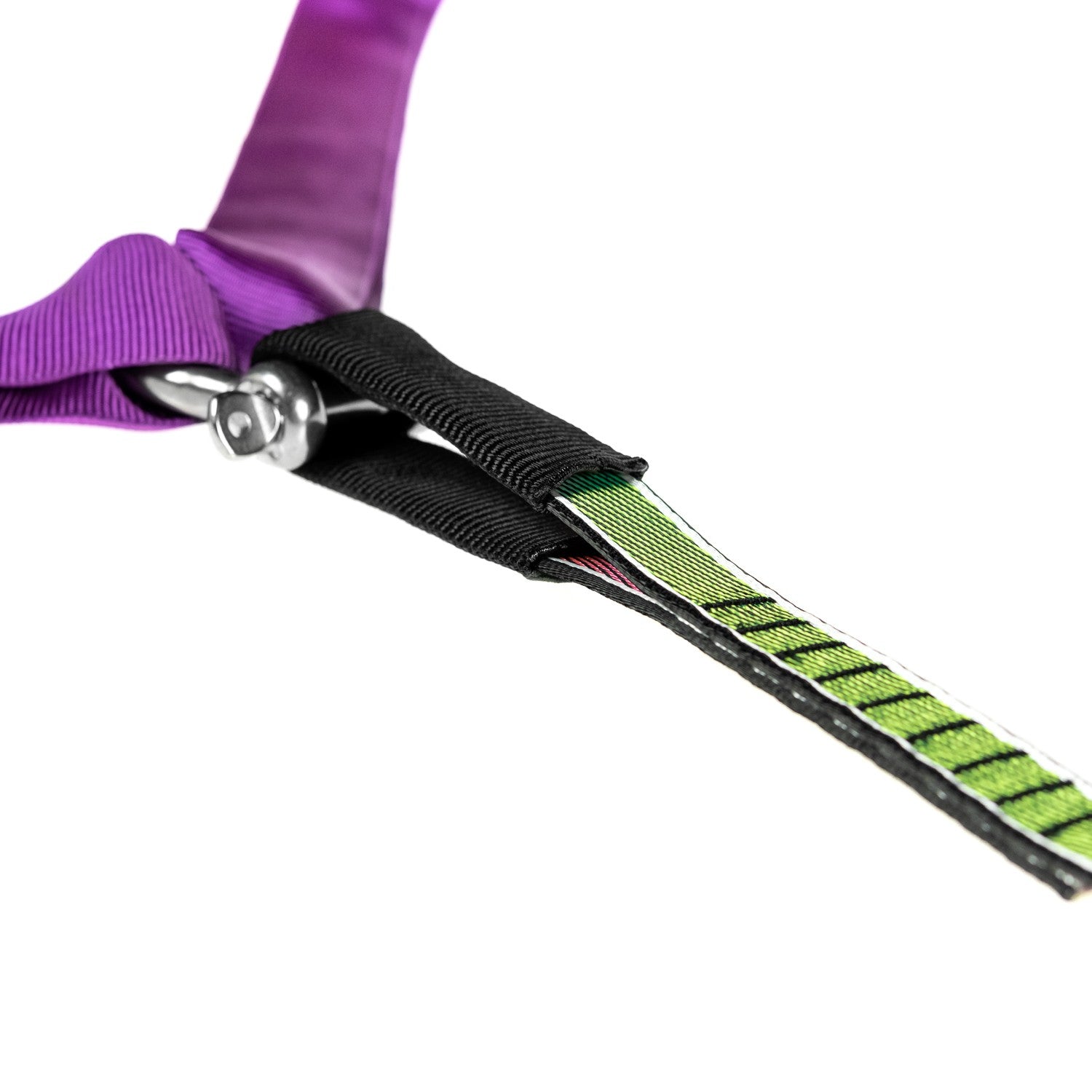

The stainless steel has shiny and smooth surface, which prevents cuts, wear and damage on webbing or slings. Its surface allows you to use a webbing soft relase as you wrap a longline around the shackle, without being damaged at all.
Is the Shackle the proper link for tri-directional load: How do I use it?
Carabiners (aluminum especially) are NOT to be used for tri-loading under high tension! The shakle on the other hand is made for this kind of system, connecting a round sling with the ratchet, pulley system or a weblock.
Product details
Technical sheet

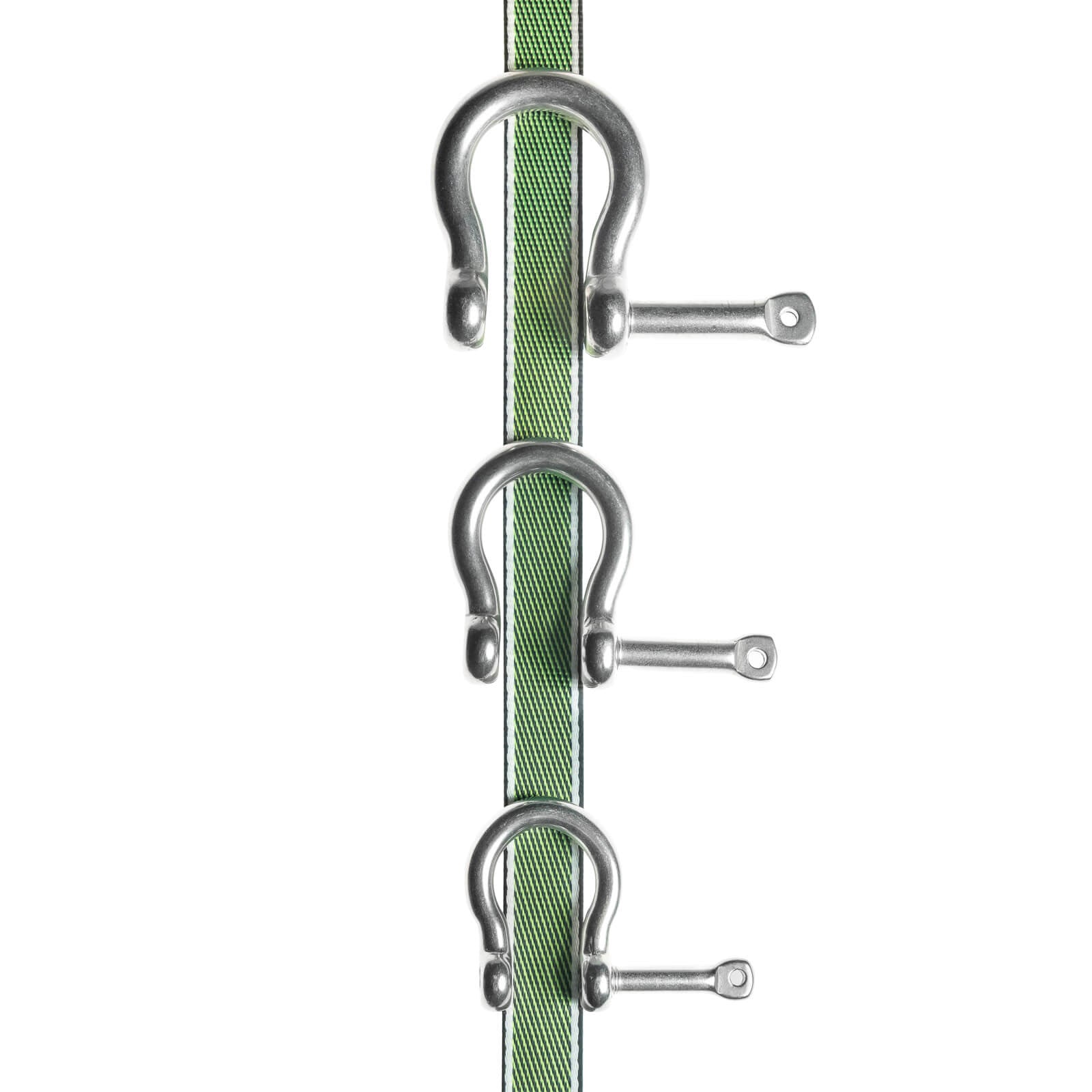

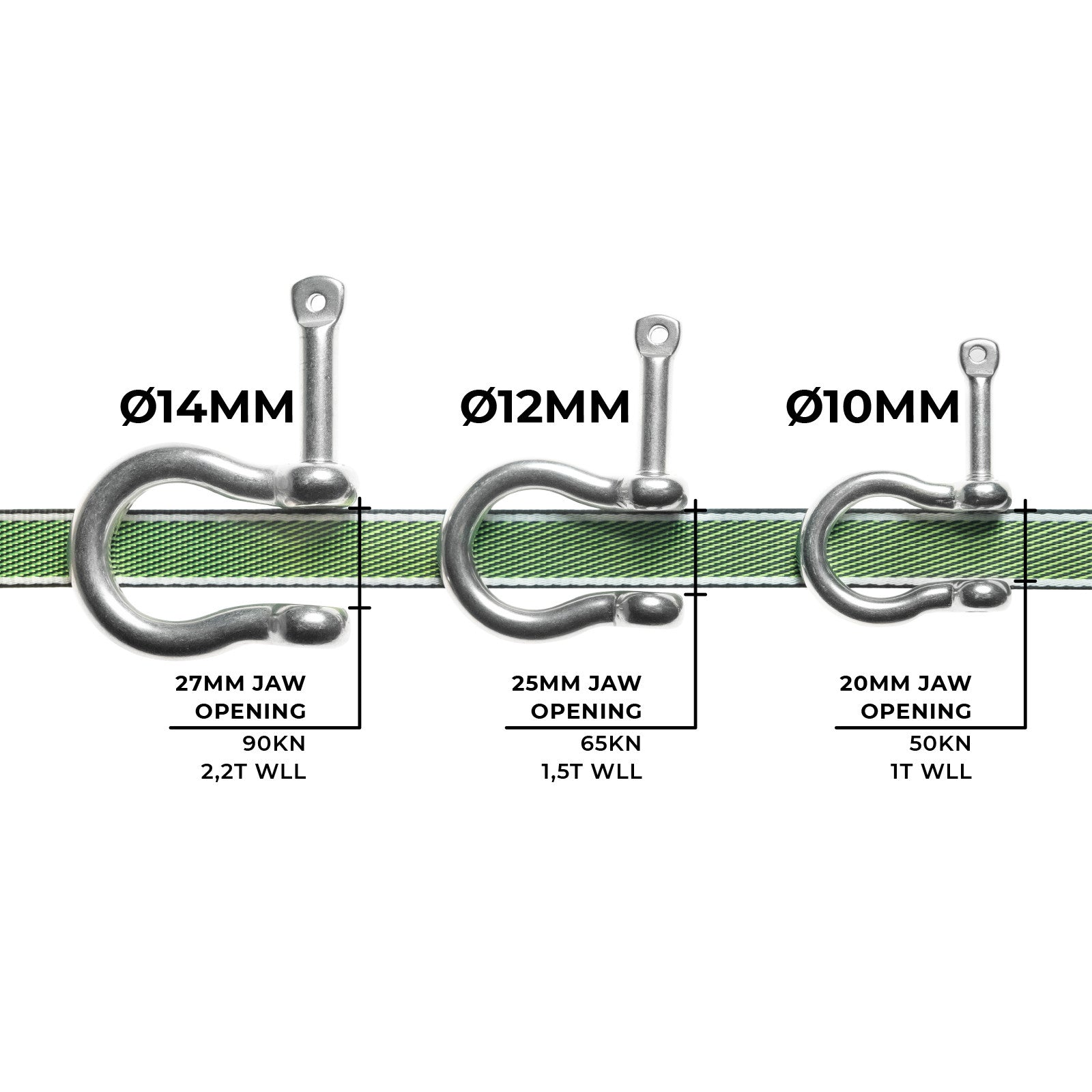

| Diameter | 10 mm | 12 mm | 14 mm |
| Material | 316 Stainless steel | ||
| Shape | Bow | ||
| Jaw opening | 20 mm | 25 mm | 27 mm |
| Captive pin | Yes | Yes | Yes |
| Strength MBS | 45 kN | 65 kN | 90 kN |
| Working load WLL | 10 kN | 15 kN | 22 kN |
| Weight | 113 gr. | 210 gr. | 305 gr. |
| Certification | No | ||
| PPE product | No | ||
| Country of manufacture | Taiwan | ||
| COMPATIBILITY | |||
| WebLock | Yes | Yes | Yes |
| Soft release Longline | No | Yes | Yes |
| Ratchet with sling | No | Yes | Yes |
| Ratchet with soft release | No | Yes | Yes |
Warning
Remember to always tighten the shackle pin, to avoid accidental bending.
