MODULAR BUNGEE - BOUNCE BOOSTER

$49.00

Sold out

Tax excluded. Shipping calculated at checkout

SELECT MODEL:

CLASSIC with end loops

CLASSIC with end loopsSOFT SHACKLE openable

Variant

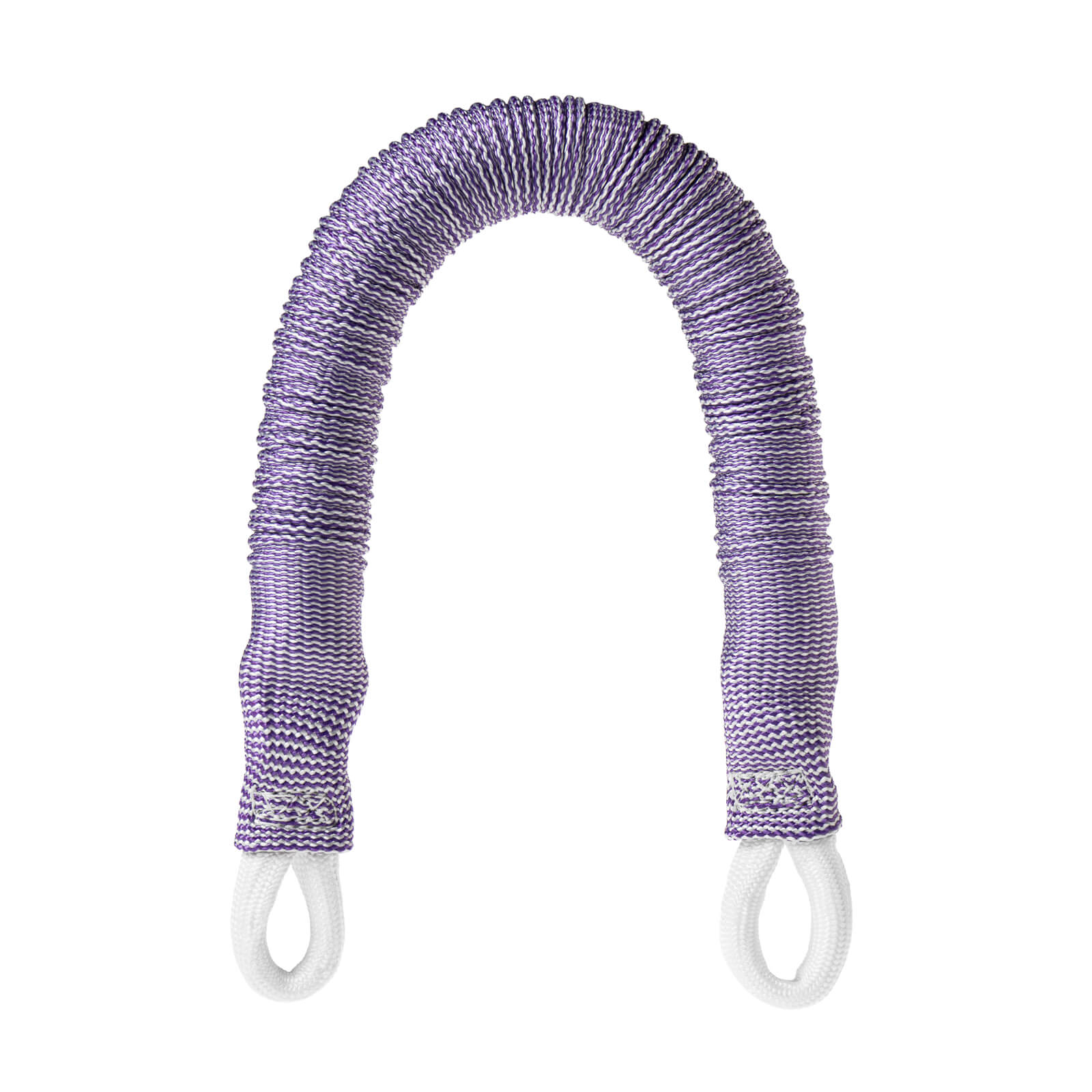

MODULAR BUNGEE

Bungee for highline freestyle, trickline & short rig. Easy to set up and adjust for different needs and activities.

Lenght: 65 cm;
Weight: 450 gr;

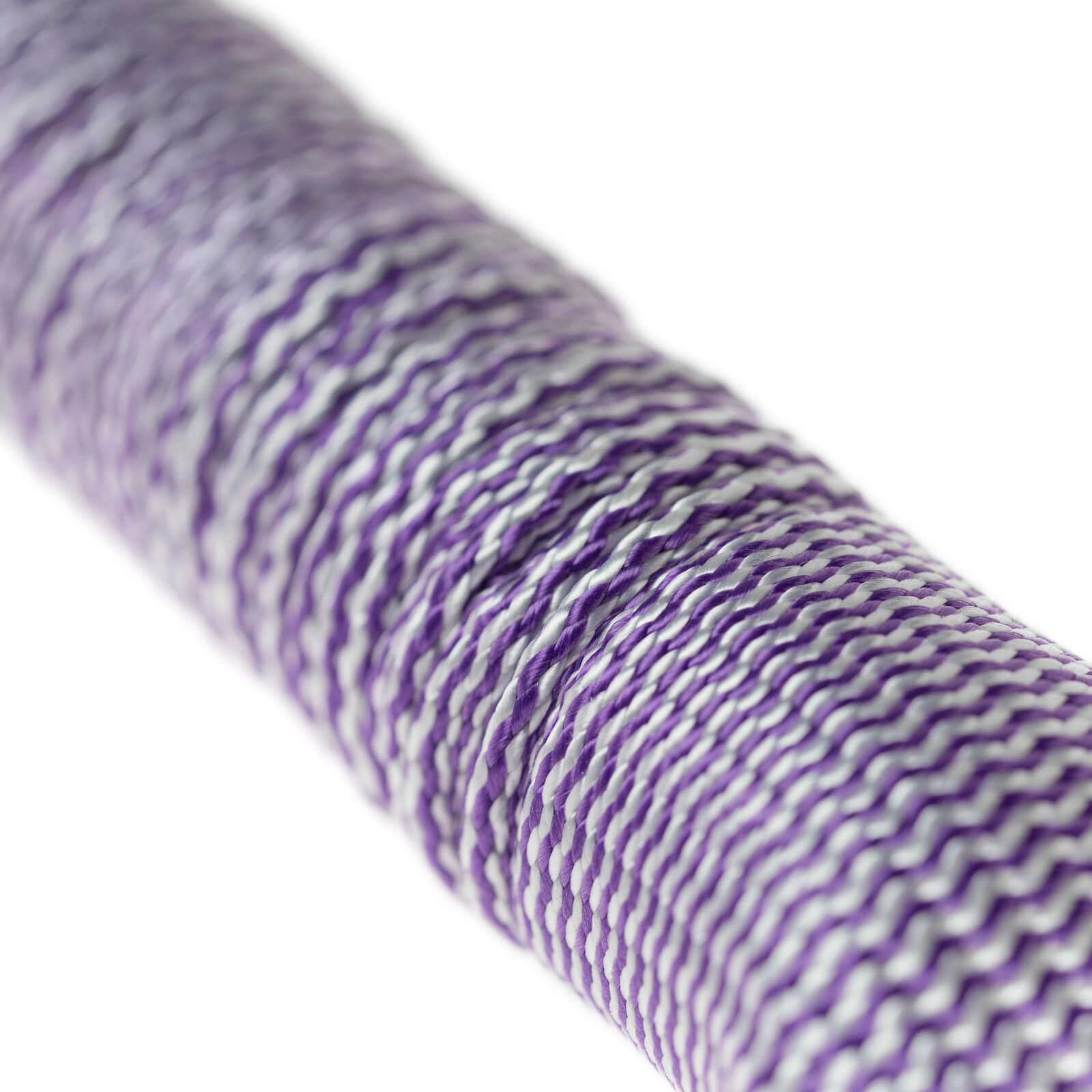

Materials: rubber, dyneema rope, inner polyethylene sleeve, polyester external sleeve;

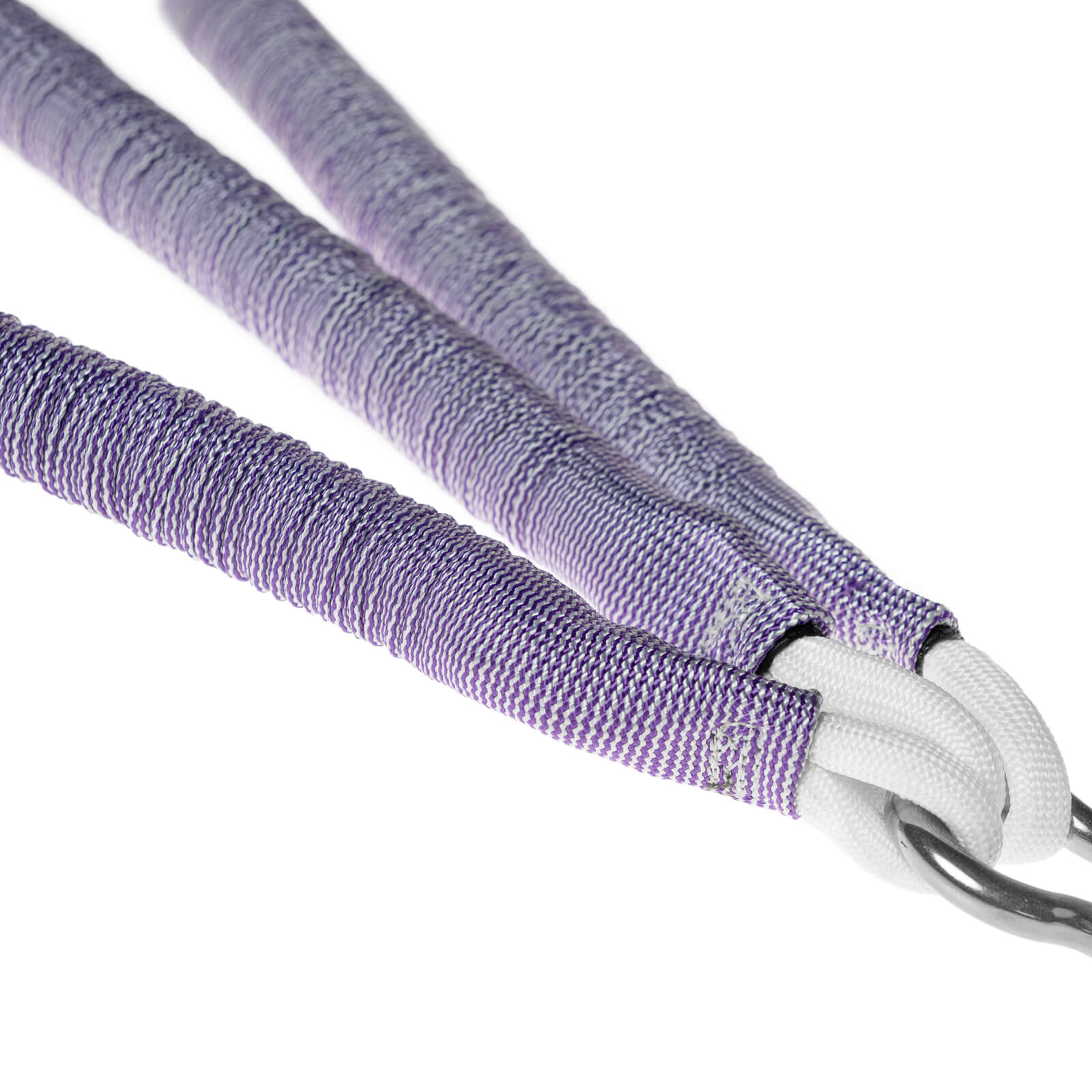

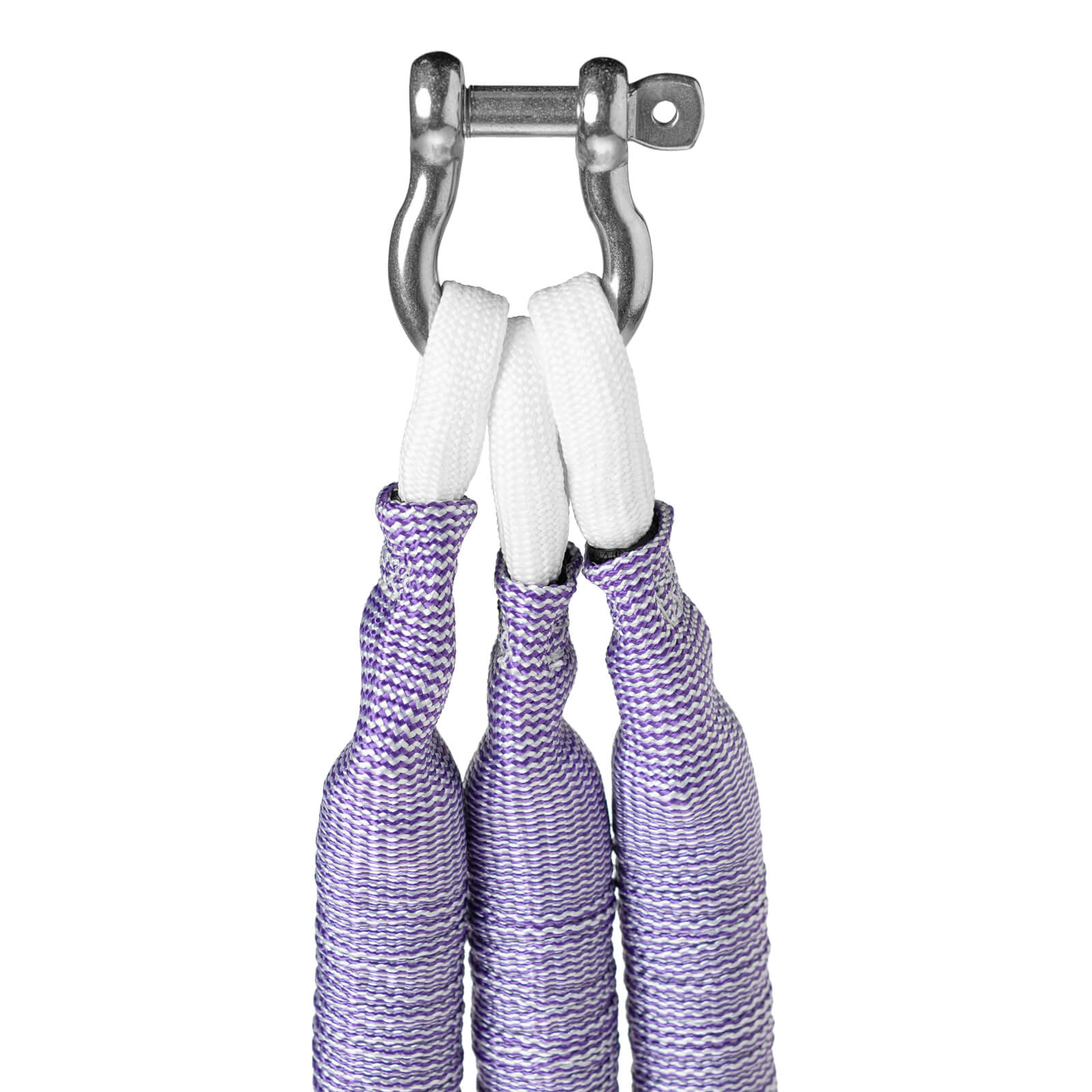

Configuration: to be use in single (rodeo) or combined from 2 up to 8 per side;
Shapes uses: straight "I-shape" or folded "V-shape";
WLL: 2.5 kN per single element I-shaped (5 kN folded in V-Shape);

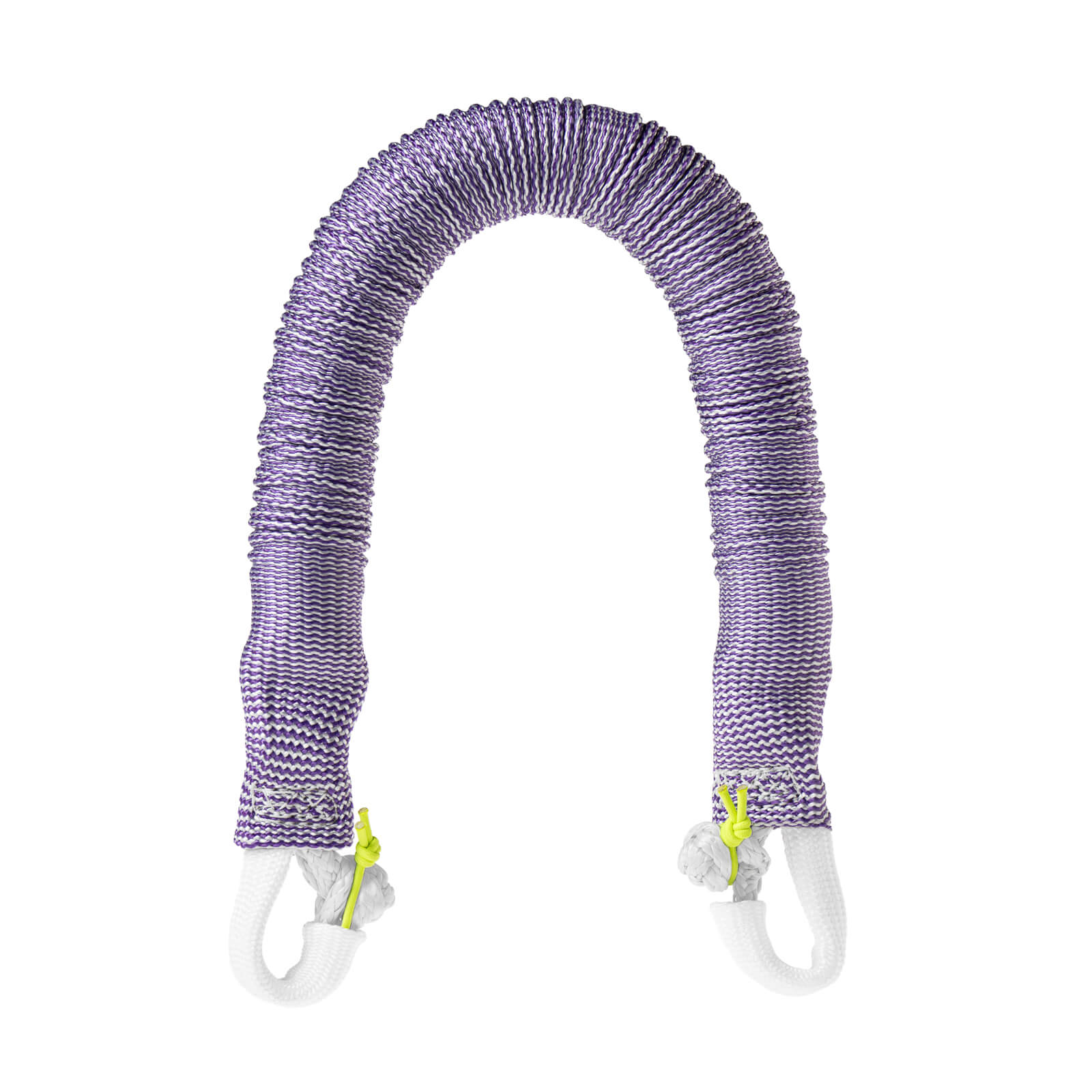

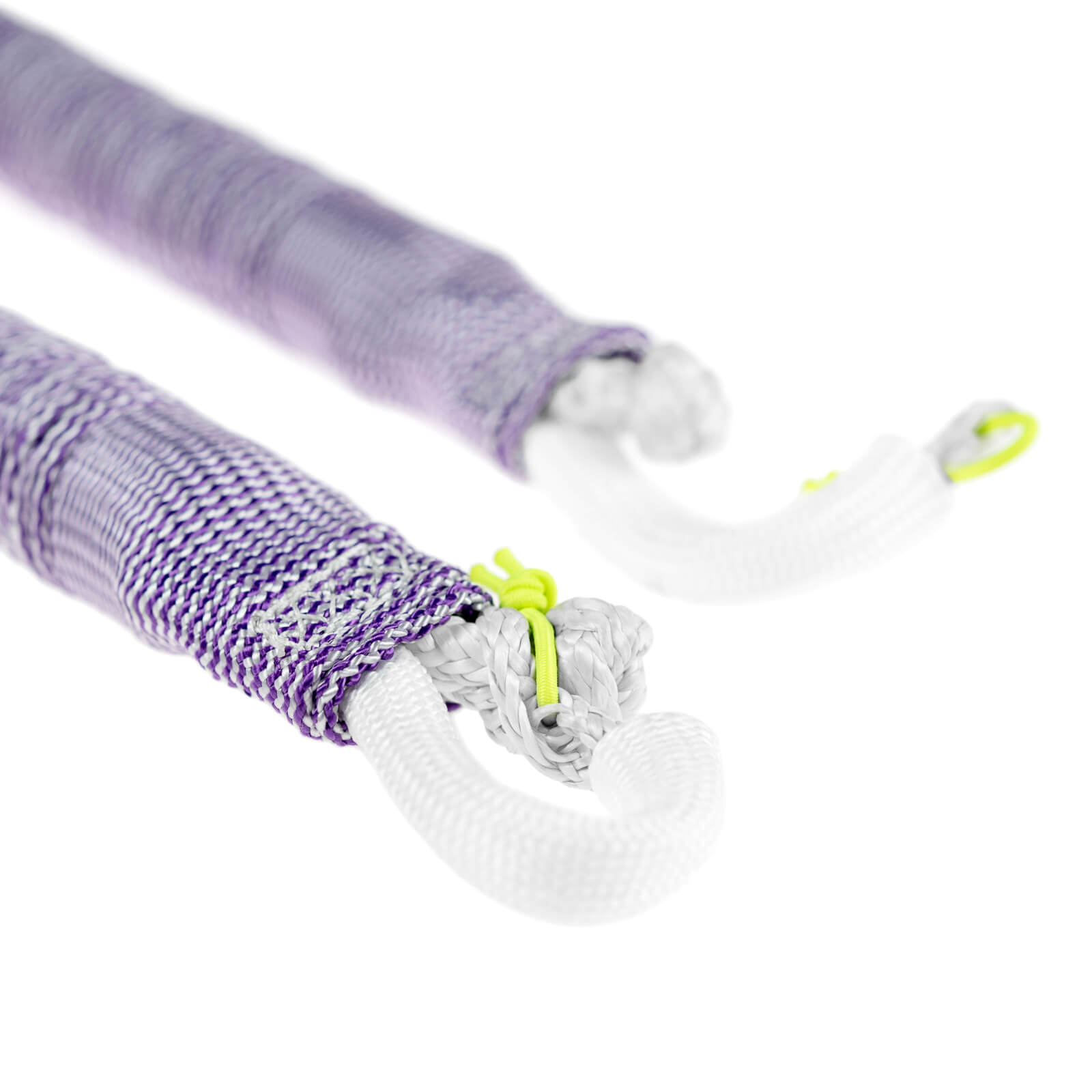

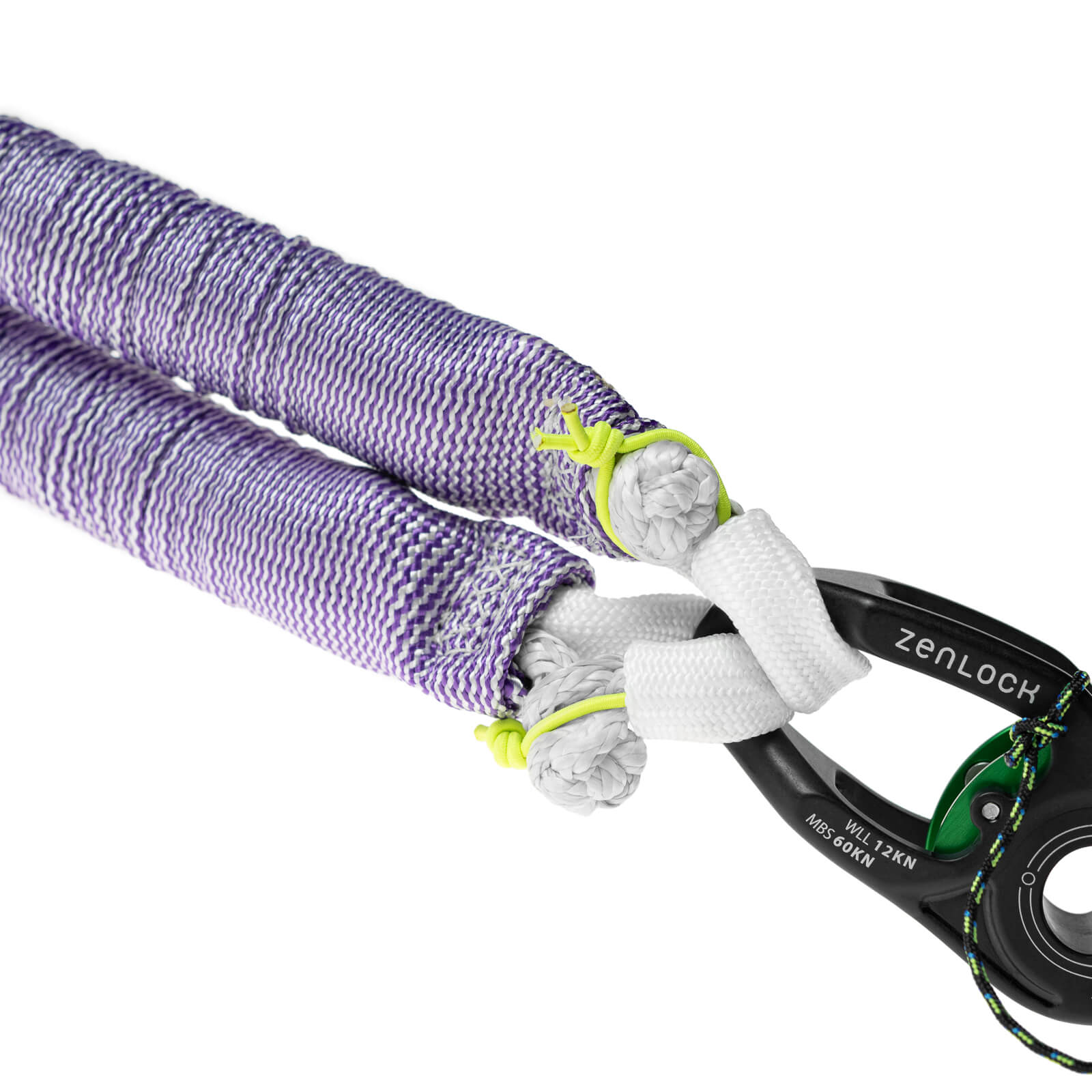

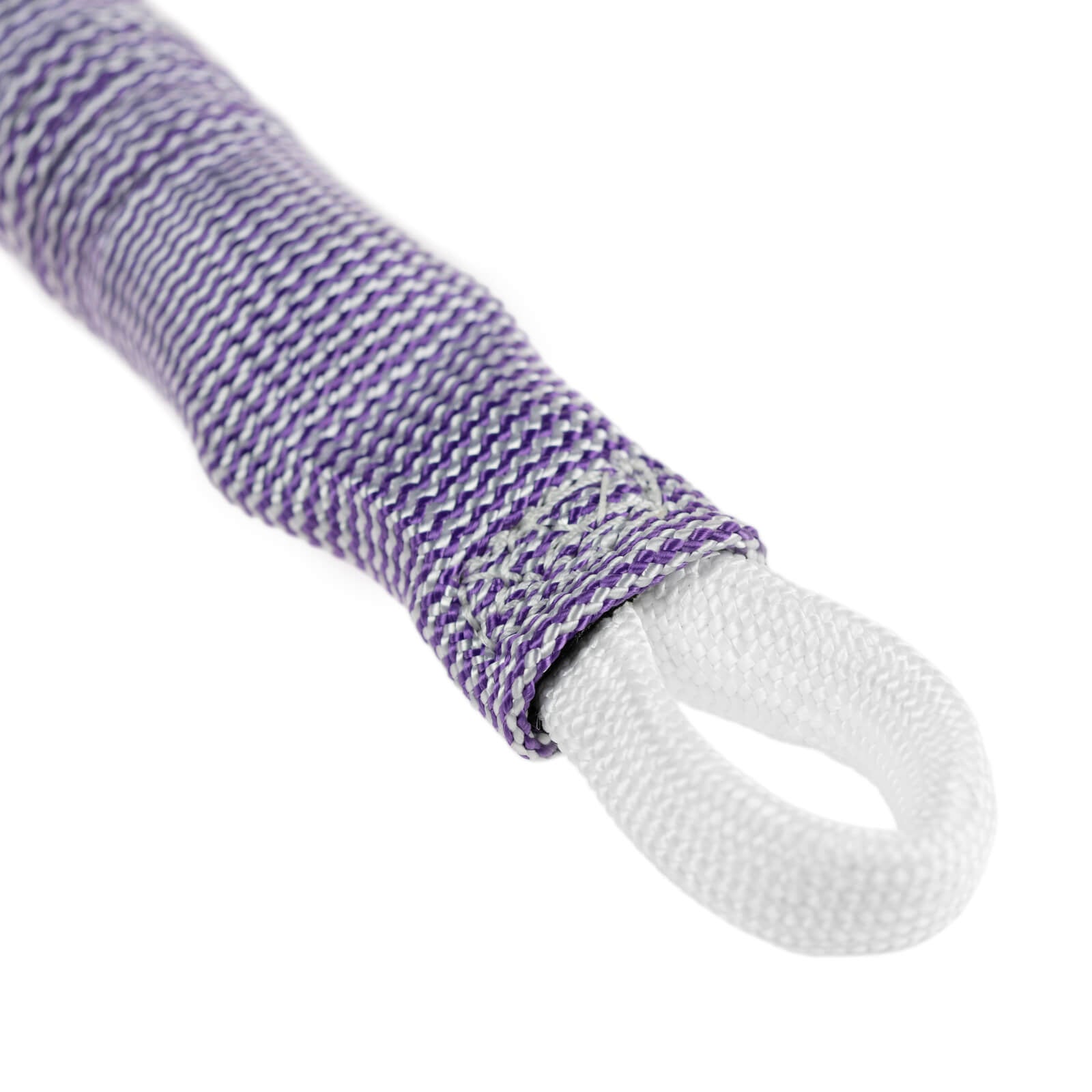

Connection for I-shape: classic end loops or openable soft shackles;
Connection for V-shape: require the BUNGEE SLING.

Follow the chart below to create your best bounce configuration.

We suggest to buy 1x BUNGEE SLING for each V-shape bungee.

Tech Specs

MODULAR BUNGEE – The Ultimate Adjustable Bounce System

Engineered for ultimate versatility, the Modular Bungee puts total control of your tension and pop right into your hands. Whether you're setting up a loose rodeo line, fine-tuning a short rig, or building an ultra-responsive freestyle highline, this modular system lets you combine multiple units seamlessly to reach your exact sweet spot. Lightweight, incredibly tough, and fully adaptable for both I-Shape and V-Shape setups, it’s built to maximize performance while protecting your gear on every single bounce.

Bungee Configuration chart

Thanks to bungees every webbing (PES, PA, HIGHTECH) can be used into freestyle. This chart will help you to chose your bungees configuration.

BUNGEE

BUNGEE CHART

If you like to create more configuration, keep in mind the WLL of 2,5 kN has to be respected for each single element.

Using un-equilibrated chain of elements, i.e. I3 + U1 or U2 + U1, the weaker element will be almost the only one to elongate.

Forbidden configuration

I1 (single bungee) or any derivated configurations (i.e I1 + U1, I1 + I1) are allowed only on Rodeo line (<2,5 kN)

BUNGEE MANUAL

Bungee and temperature

Cold temperatures, use to make bungees smoother (more elongation). If you are rigging I2 in summer, then in winter you might need rig it in I3.

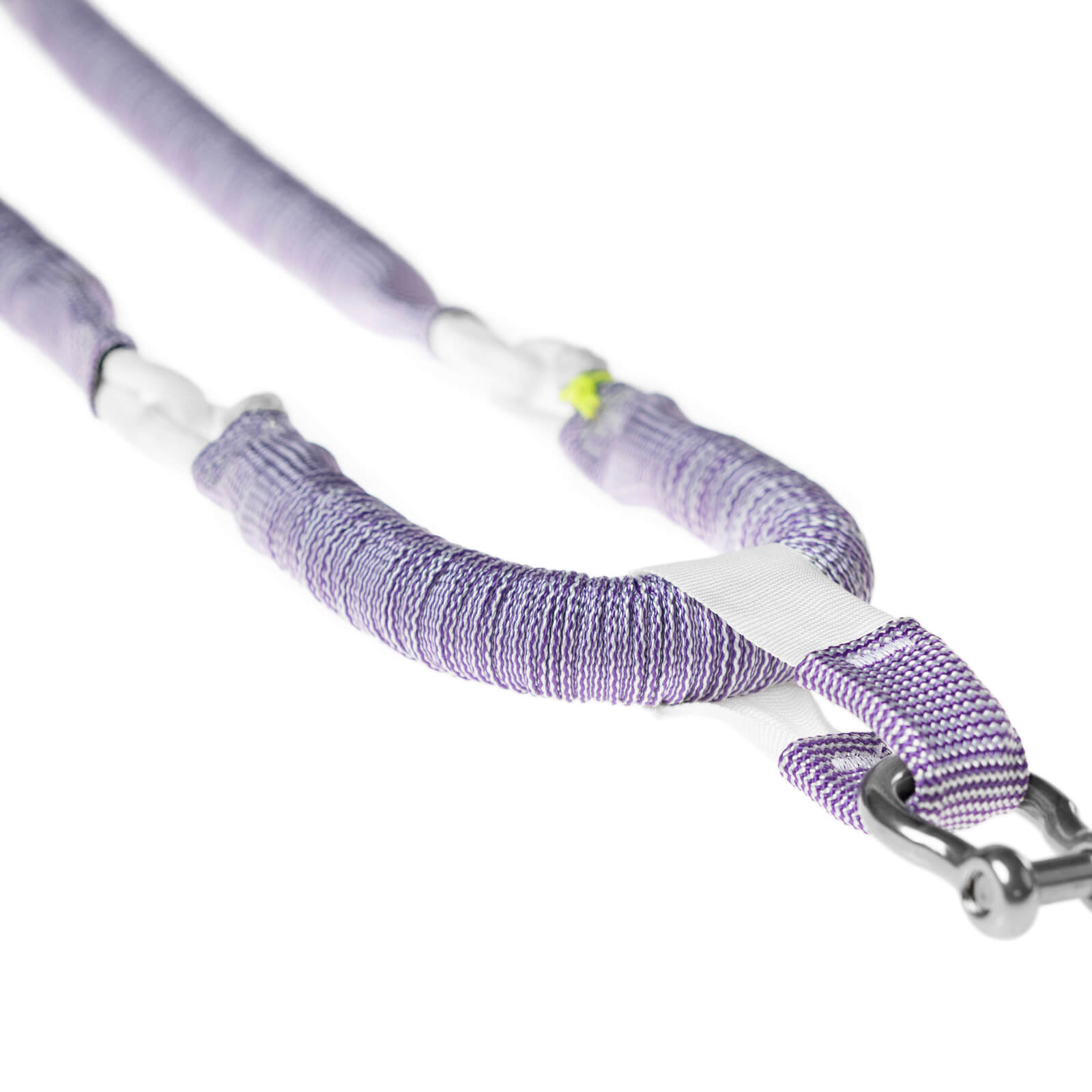

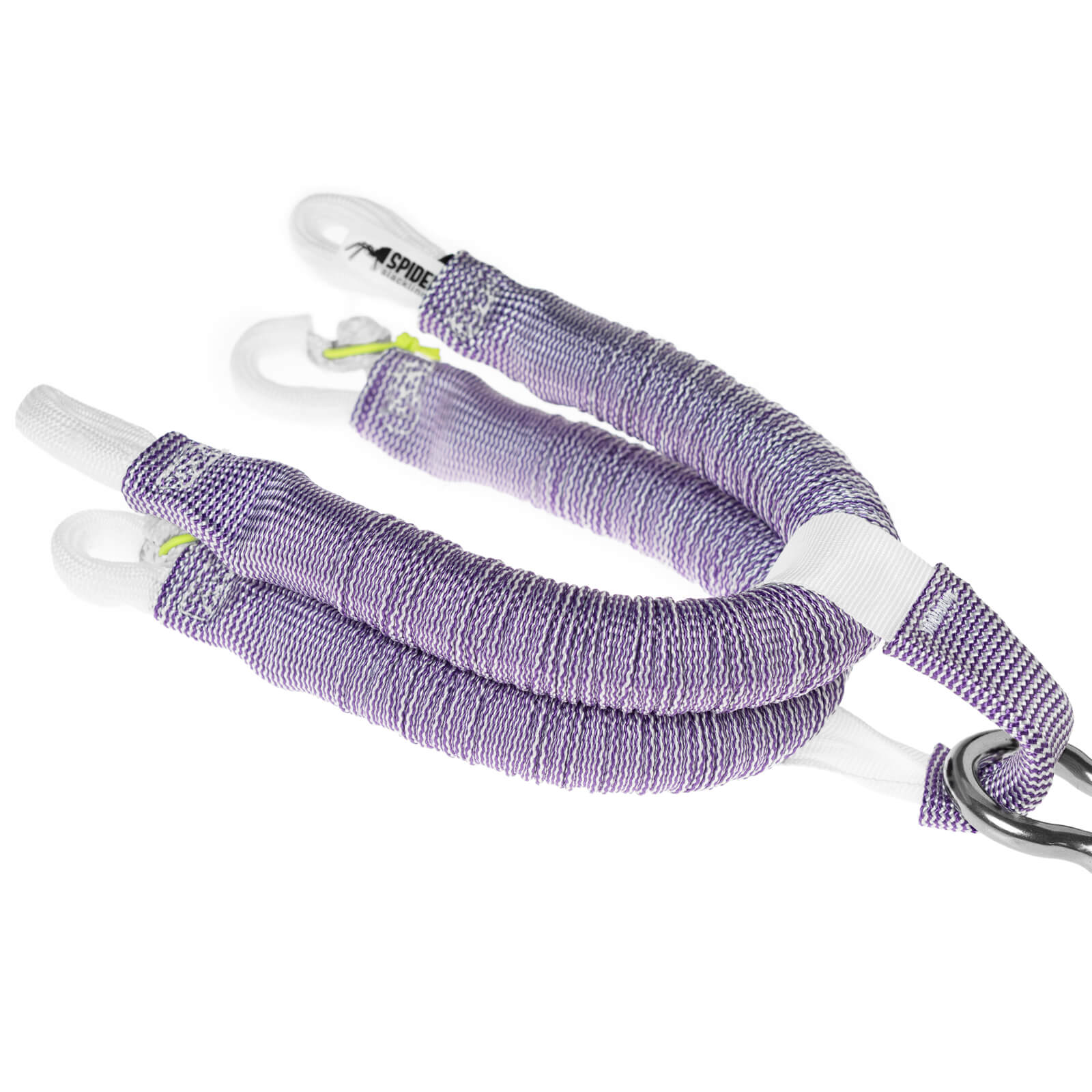

Remark on V-Shape and BUNGEE SLING

Rigging in V-Shape can be sometimes more convenient due to anchor configuration (i.e. with bolts) however you have to equilize properly the legs.

The riding feeling of an equilized V-shape or I-shape will be basically the same.

Select the BUNGEE SLING accessory as connector for V-shape and follow the instructiosns for installation.

Safety and Backup Info

A strong backup for the bungees is highly recommended. We suggest our BACKUP EXTENDER with minimum 2,5 times longer than your bungee configuration with no tension (i.e. I2-Shape bungee require 2,5 x 65 = 162,5 cm so choose 2 m EXTENDER).

BUNGEE 4

Like a webbing, if you rig in permarig, bungees capacity and strenght will decrease faster. Estimated span life of bungee is 200 days of tensioning, but can be shortened by several factors. Read carefully manual and if you feel your bungee is becoming anormally smooth, it's time to replace it.

SKU HGS02
