BLUEBERRY SR WEBLOCK

Sale price$105.00

Tax excluded. Shipping calculated at checkout


SELECT OPTION: None
SELECT ACCESSORY: None

BLUBERRY SR - Aluminum Linelock for Slackline Webbing with Soft Release option

  • Material: 0,16 inch (4 mm) tempered aluminum alloy plates, diverter and steel pin;
  • Lock pin: SAFETY push pin
  • Hollow diverter: reduced weight and retaining 95% of original webbing resistance;
  • Compatible webbings: any polyester and nylon with 0,96 - 1 inch (24-26 mm) width, up to 10 mm thickness;
  • Compatible connectors: omega shackles Ø8-Ø16 mm both directions, shackles Ø16-Ø20 on the pin, Quicklinks Ø8-Ø20, every symmetrical EN 12275 carabiner;
  • Weight: 4,4oz (125 gr).

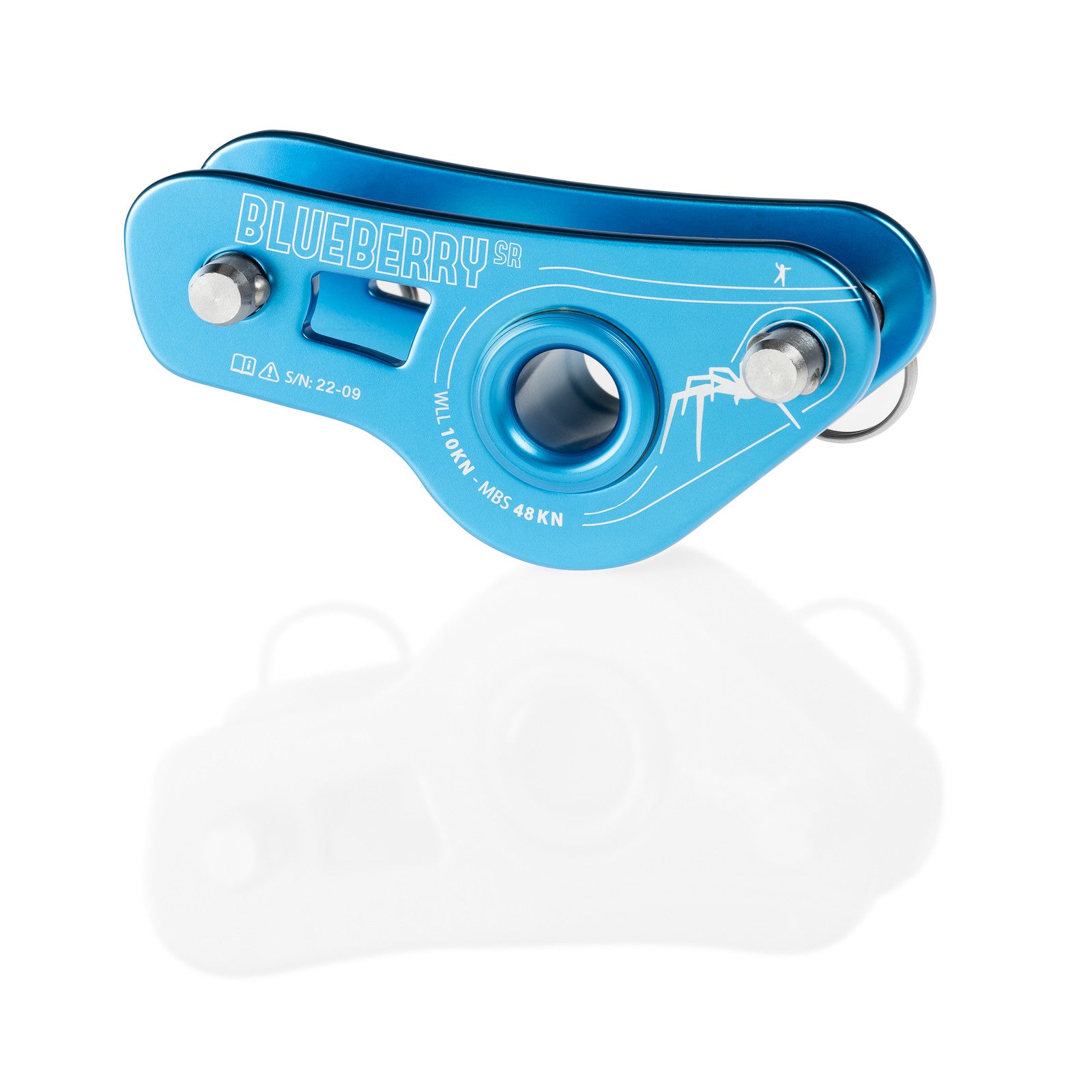

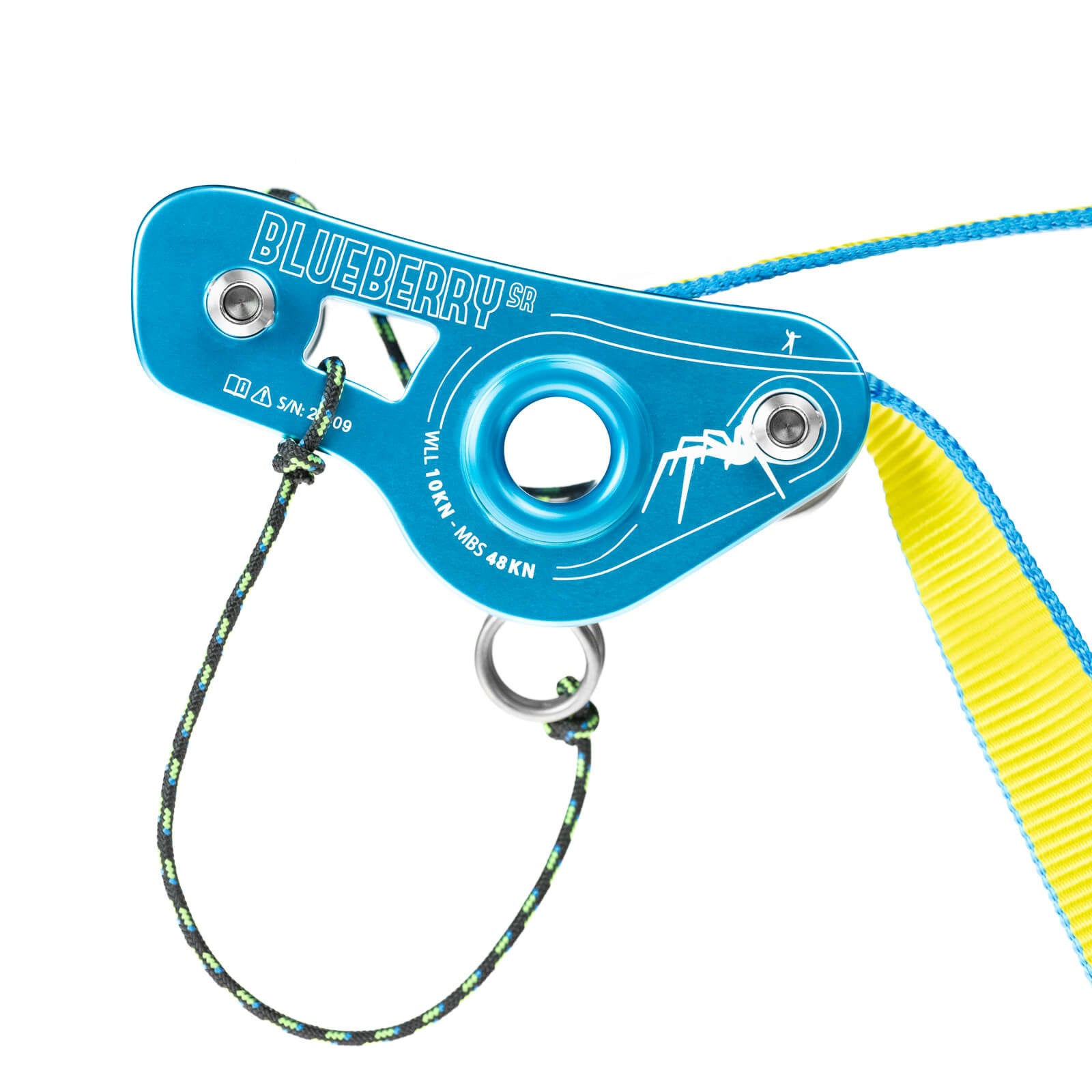

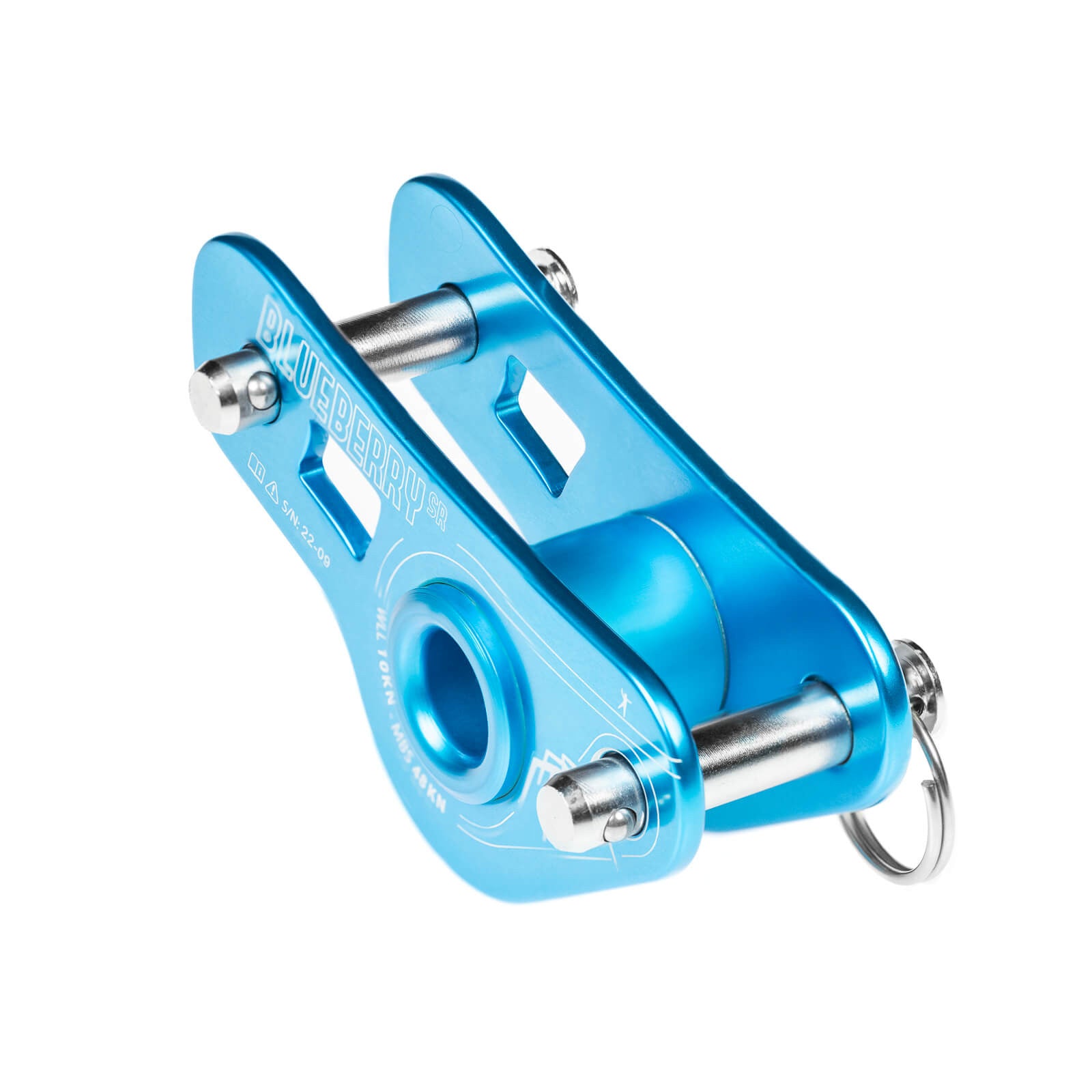

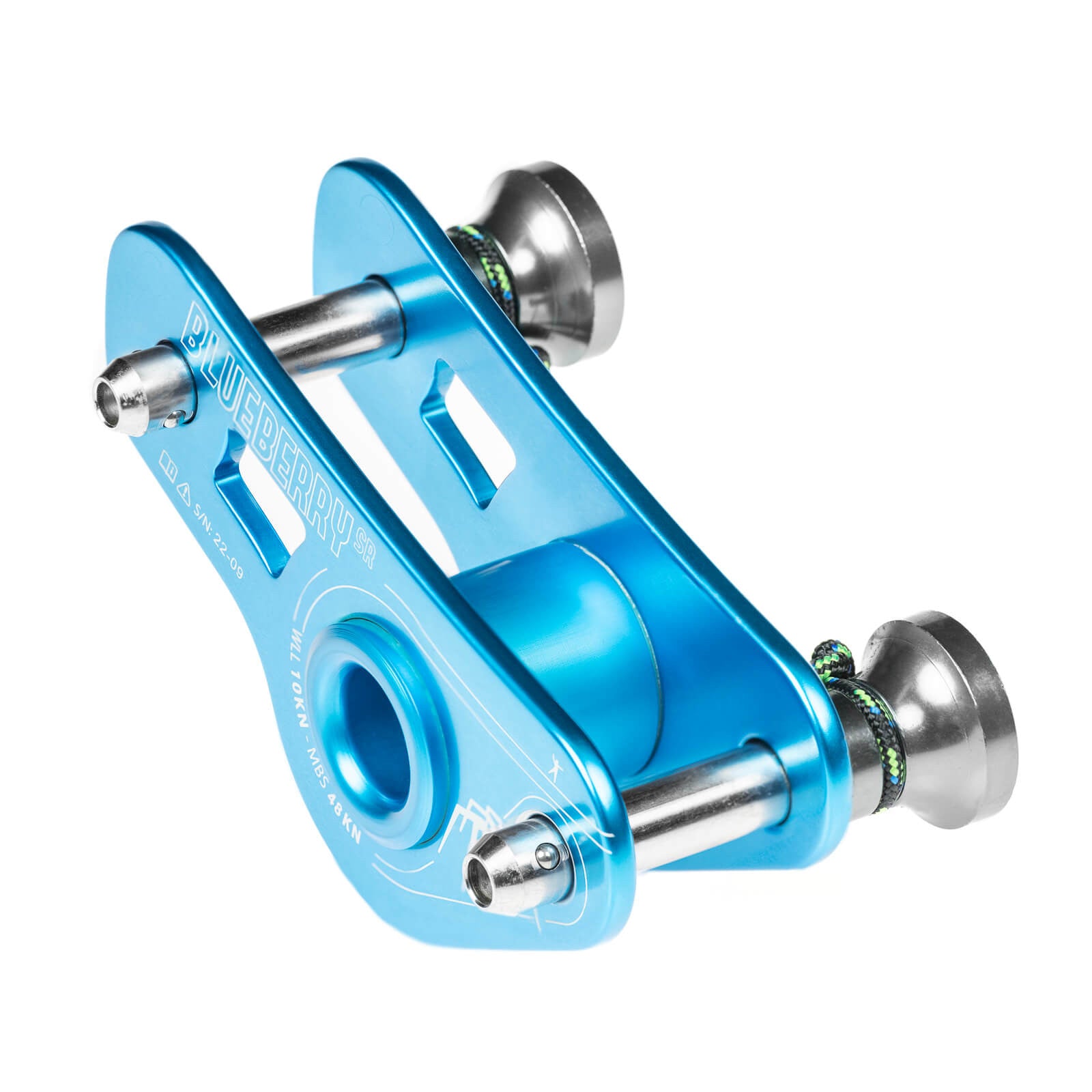

Introducing the BLUBERRY SR Linelock

The BLUEBERRY SR is a light and robust weblock, ideal for any 1-inch webbing. It’s almost identical to the BLUEBERRY SH, but includes a Soft Release/sling direct option.

The tempered aluminum body supports up to 2,200 lbs working load and weighs only 4.4 oz.

BLUBERRY SR Technology

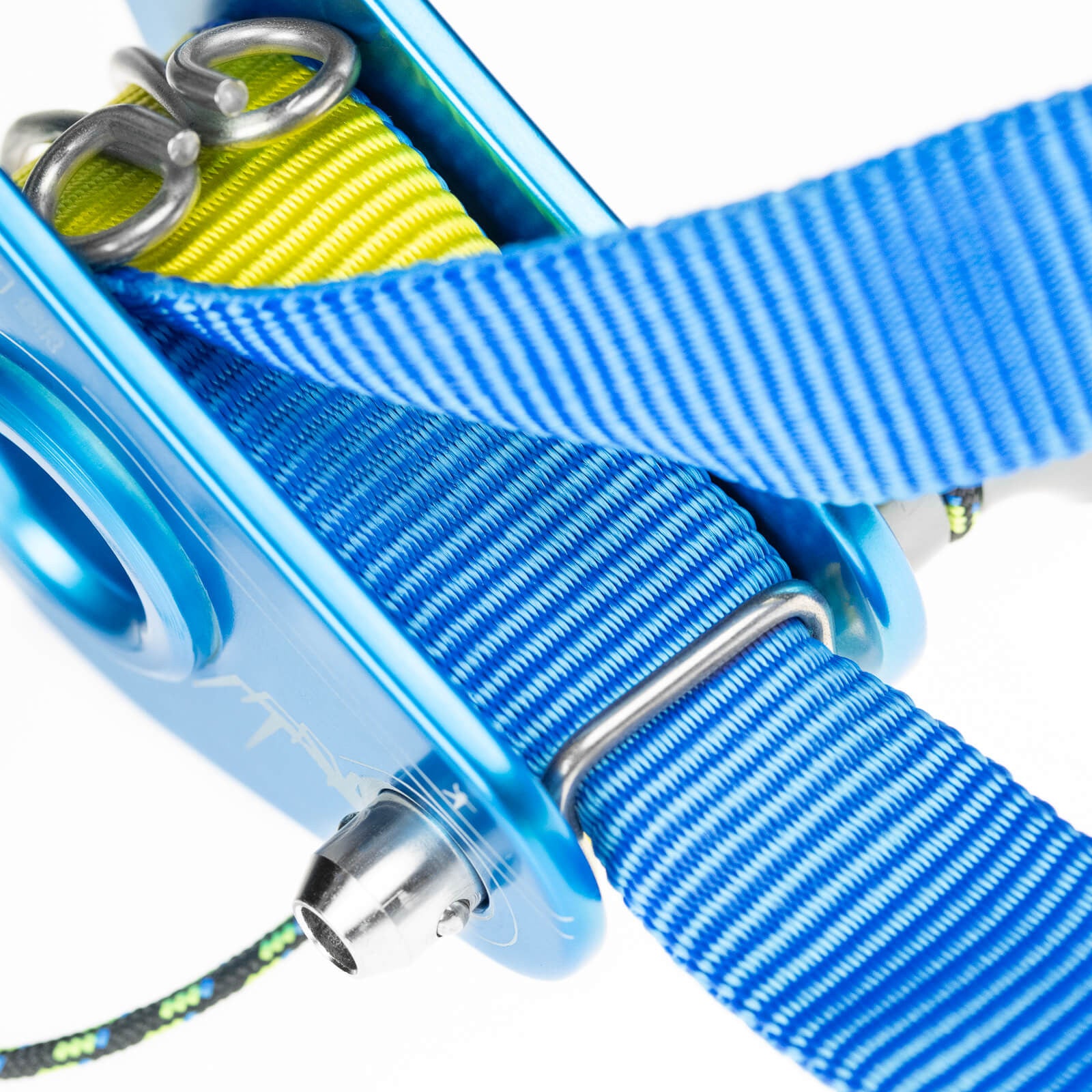

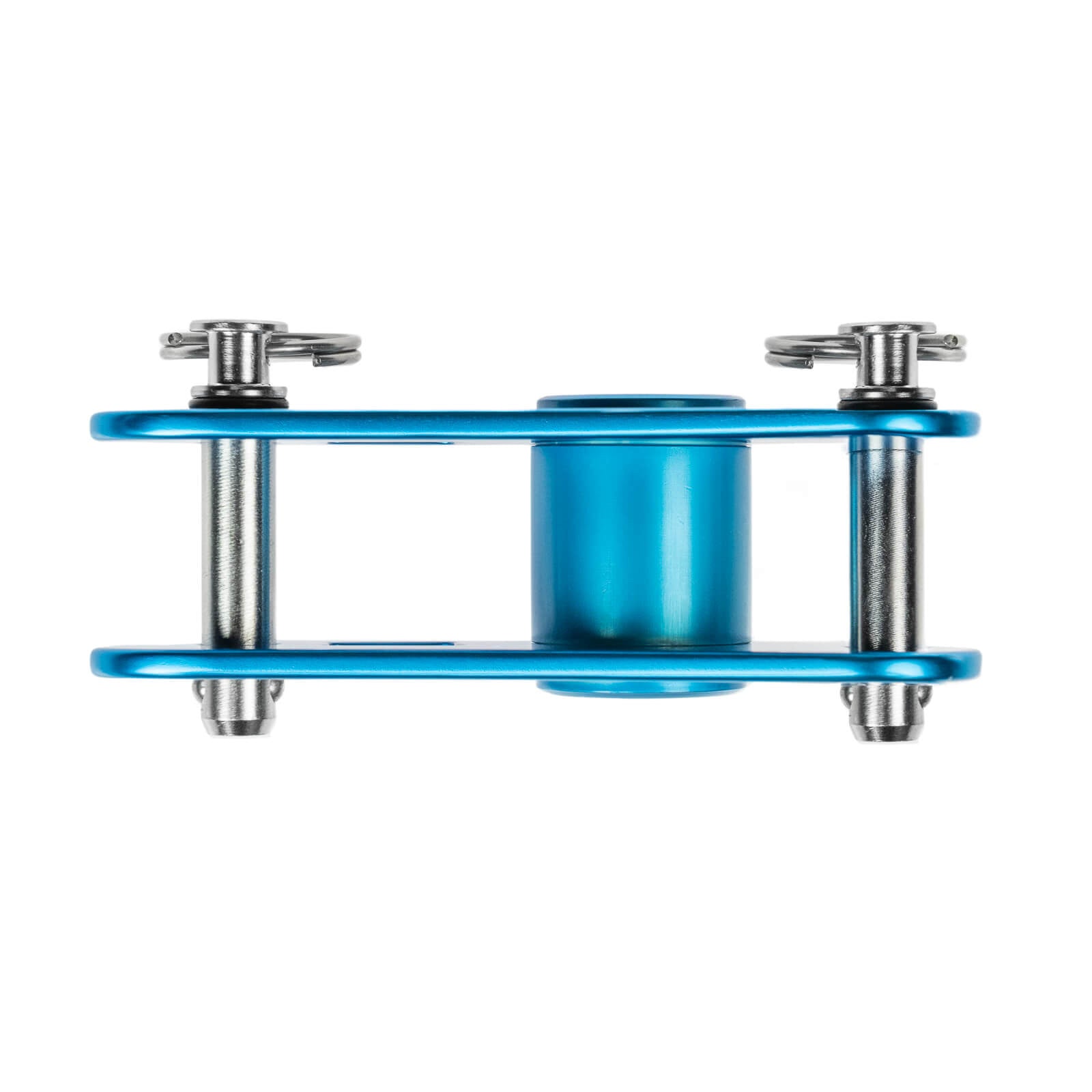

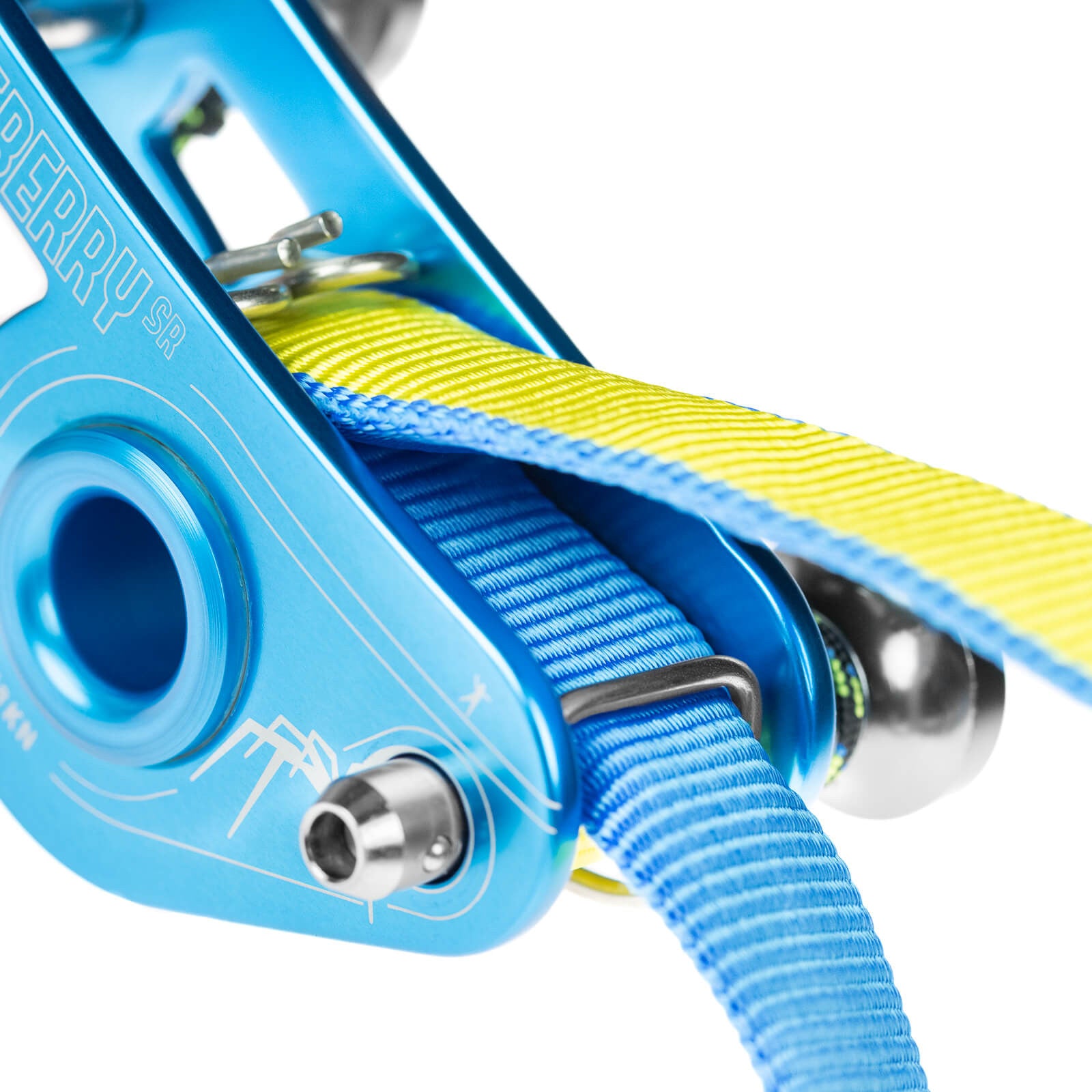

  1. The BLUEBERRY SR features an anodized aluminum diverter that distributes energy across the webbing surface and retains 95% of its original resistance;
  2. The stainless steel pins ensure smooth webbing sliding during setup.

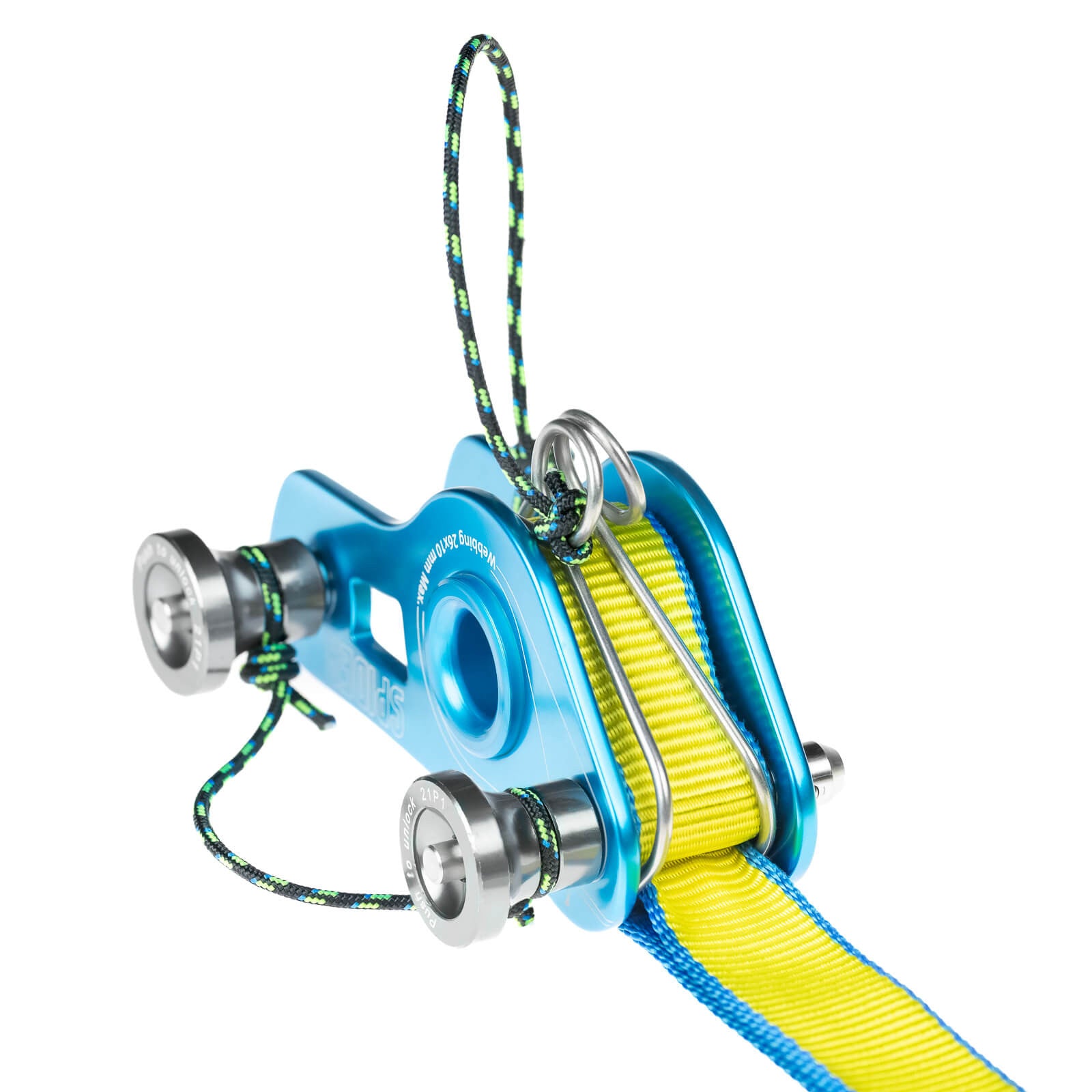

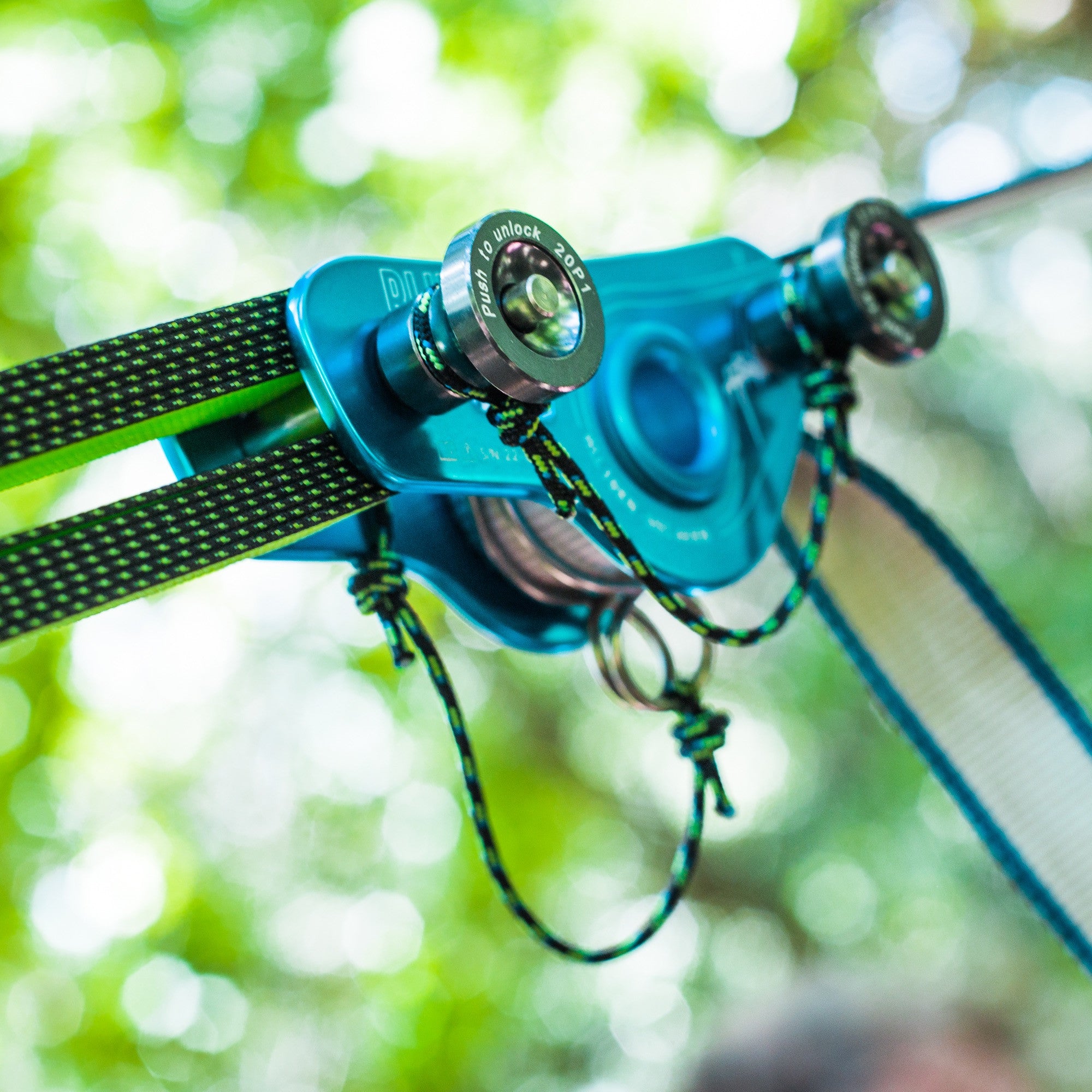

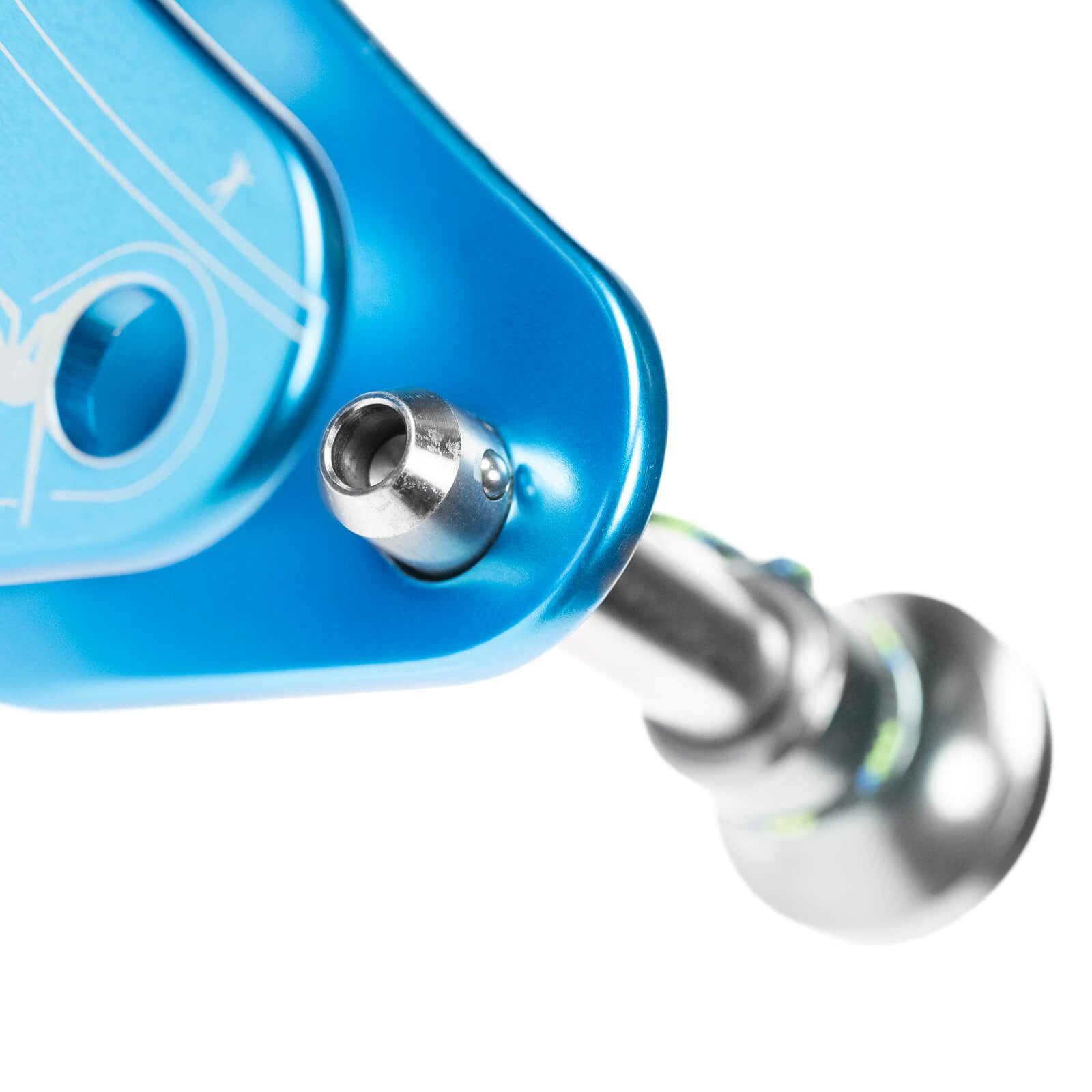

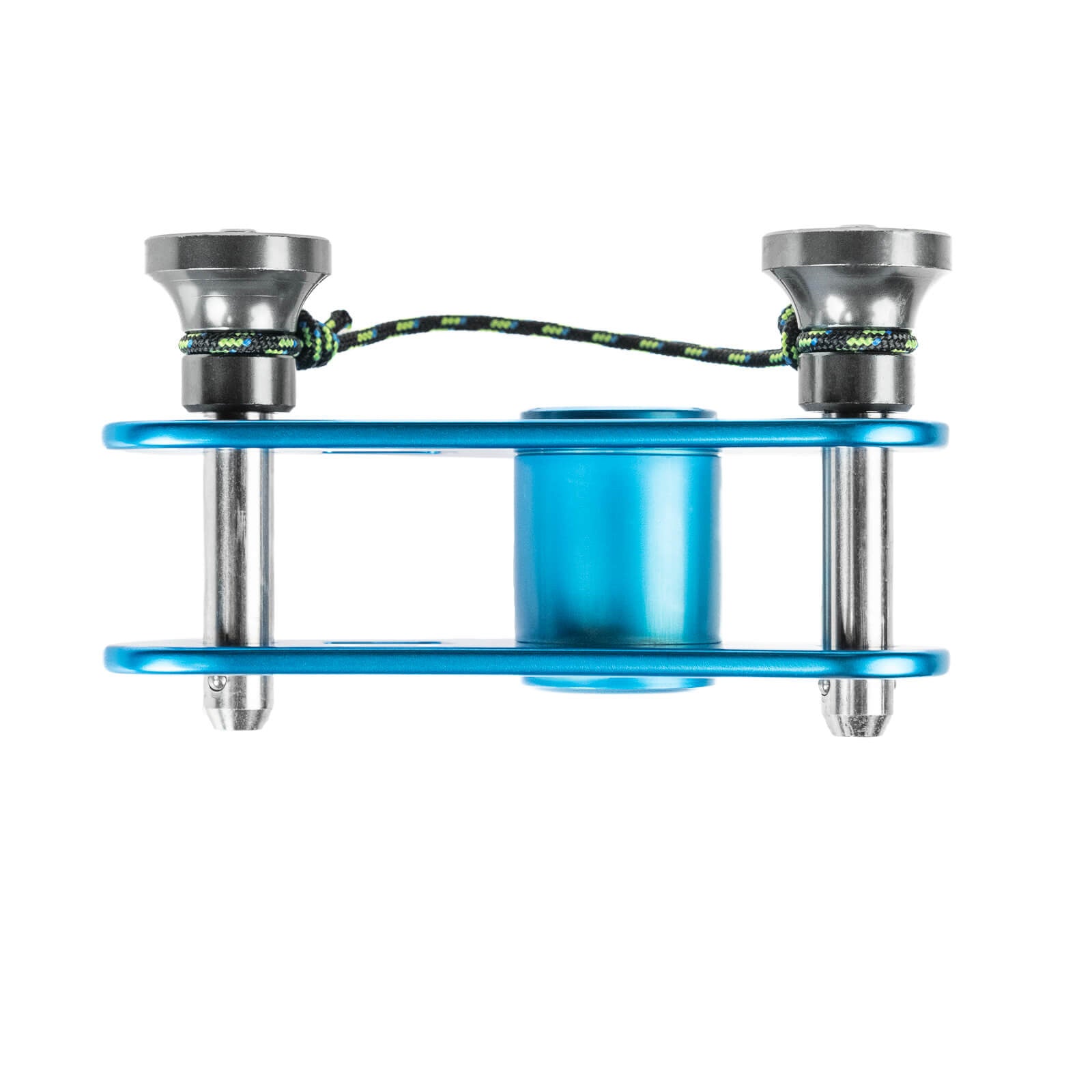

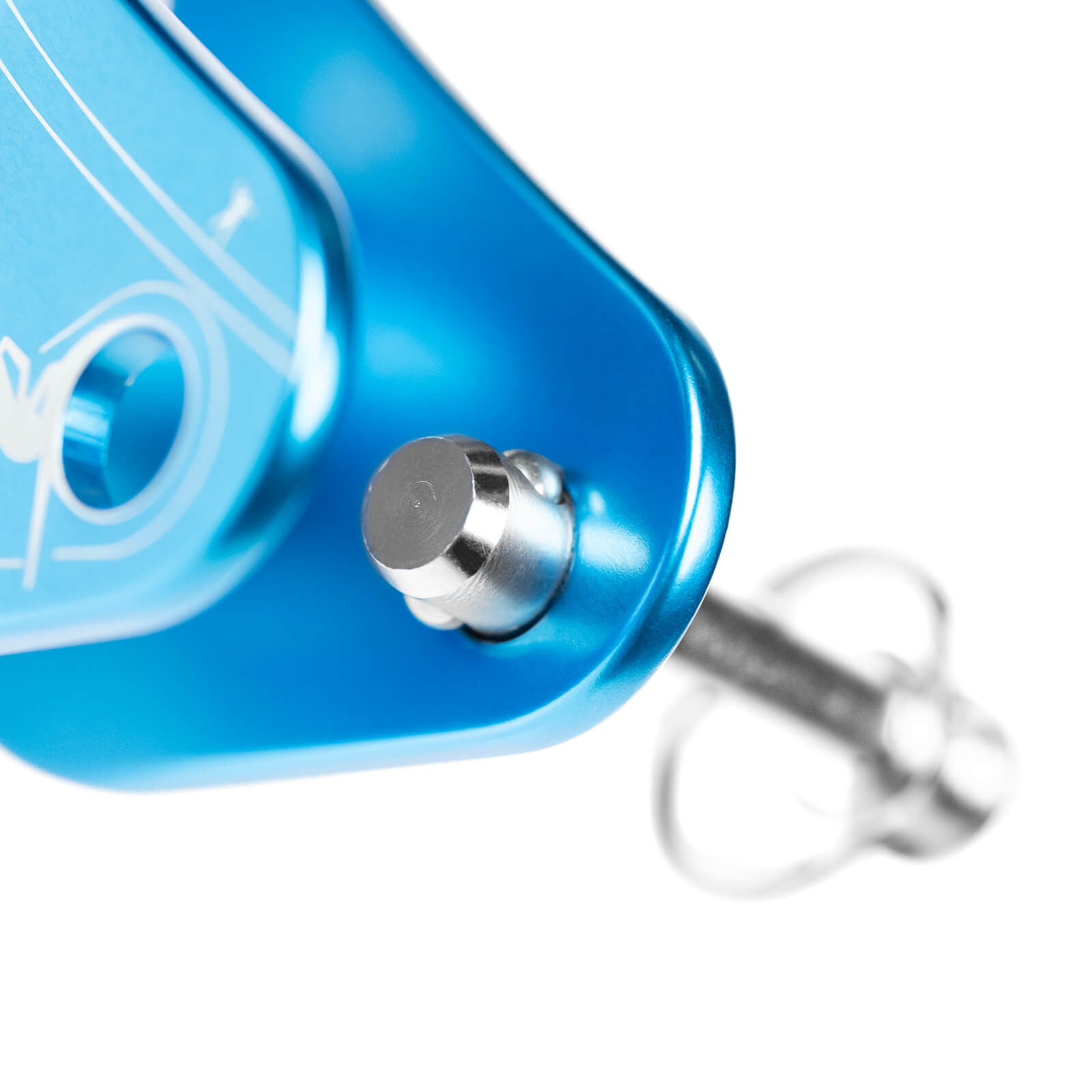

  3. Push Button stainless steel and aluminum head with easy-to-handle snap button. Requires a double movement (press and pull) to unlock, complying with the latest safety standards. Includes an anti-drop MINI SLING.
  4. Reinforced and anodized aluminum make it highly resistant to shock and humidity.

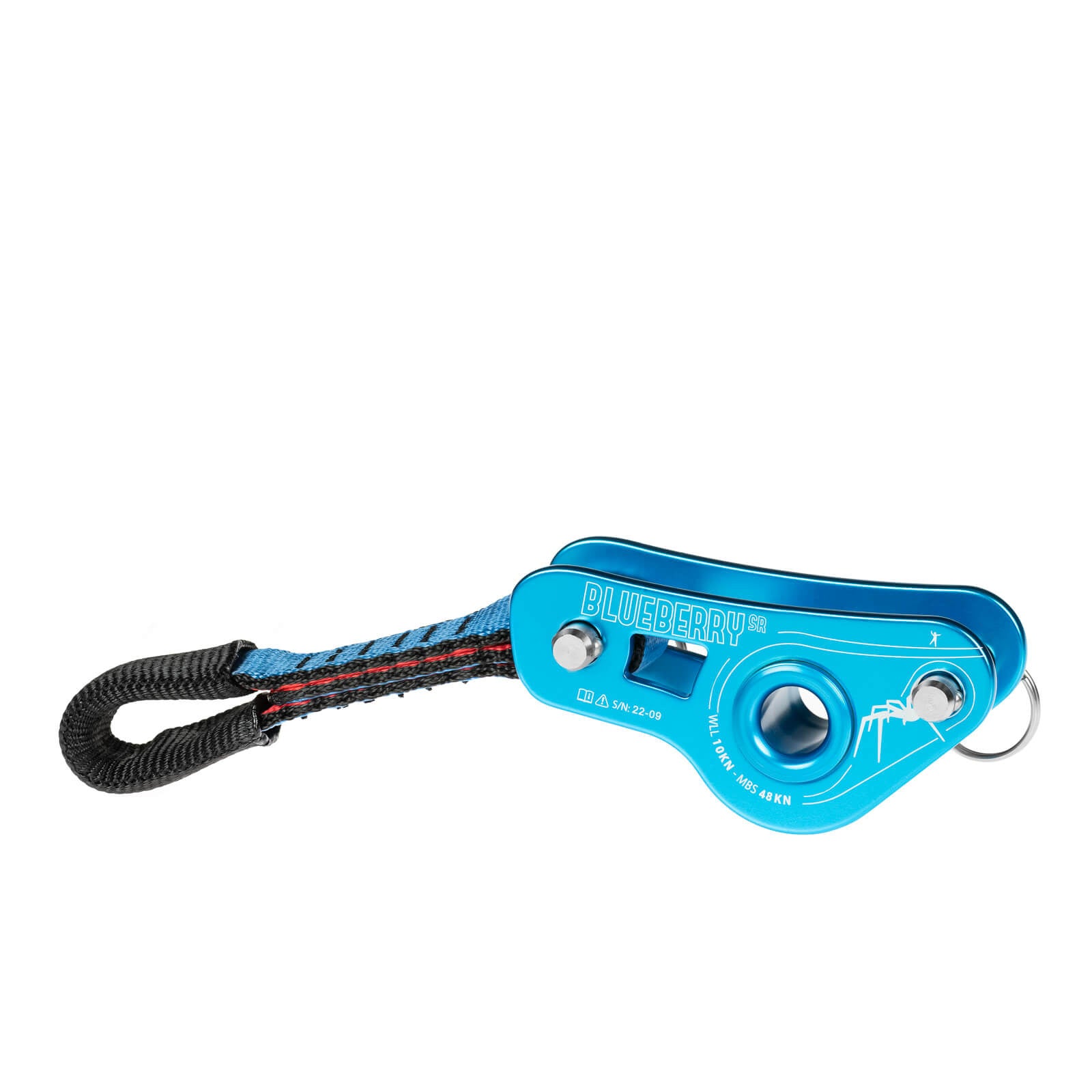

  5. The rear connection pin makes it compatible with a soft release or direct sling entry.

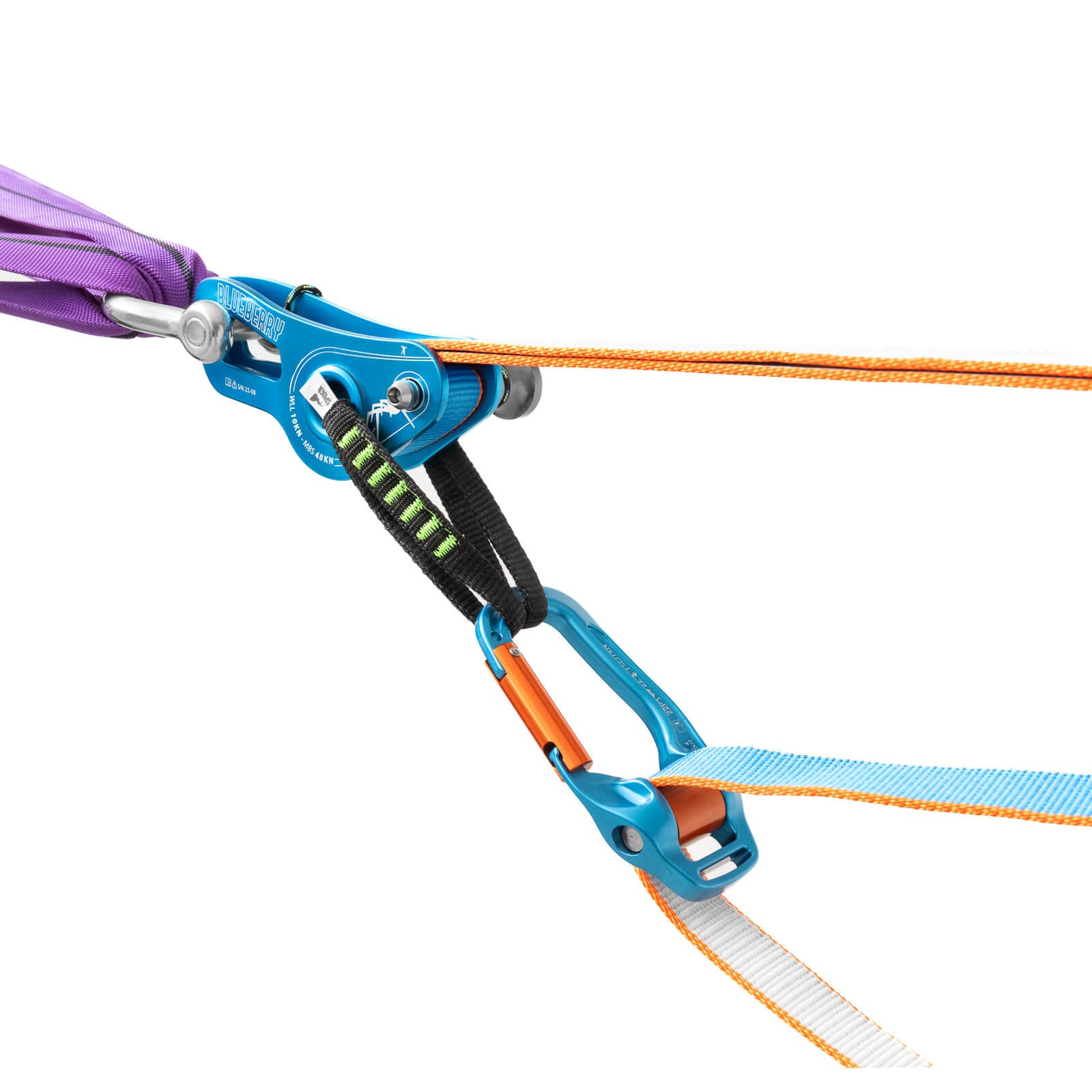

Understanding the SR Model

While the BLUBERRY connects directly to all standard types of connectors, the SR model is designed for use with a Soft Release thanks to its second bottom pin. This double pin eliminates the need for an extra connector in your anchor system.

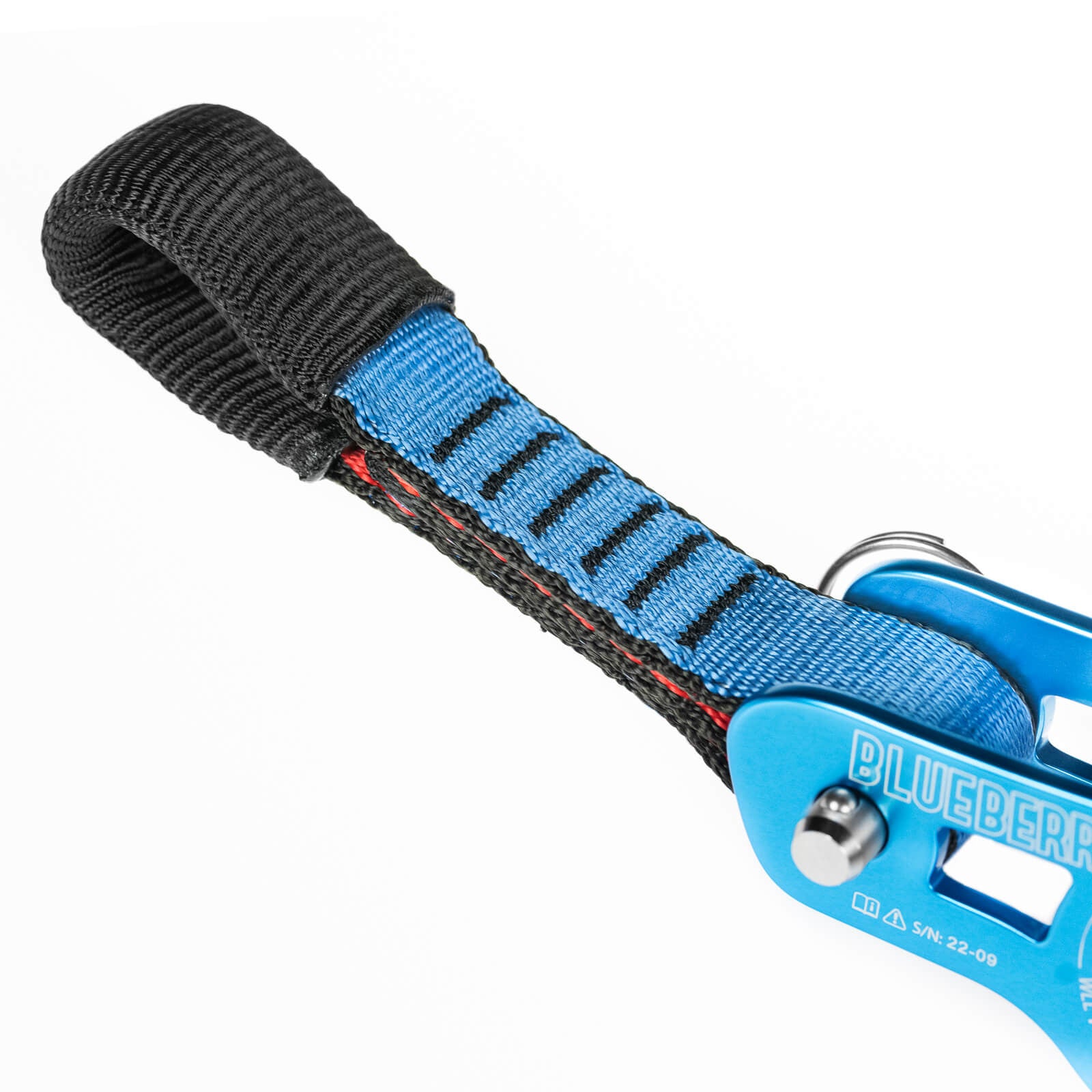

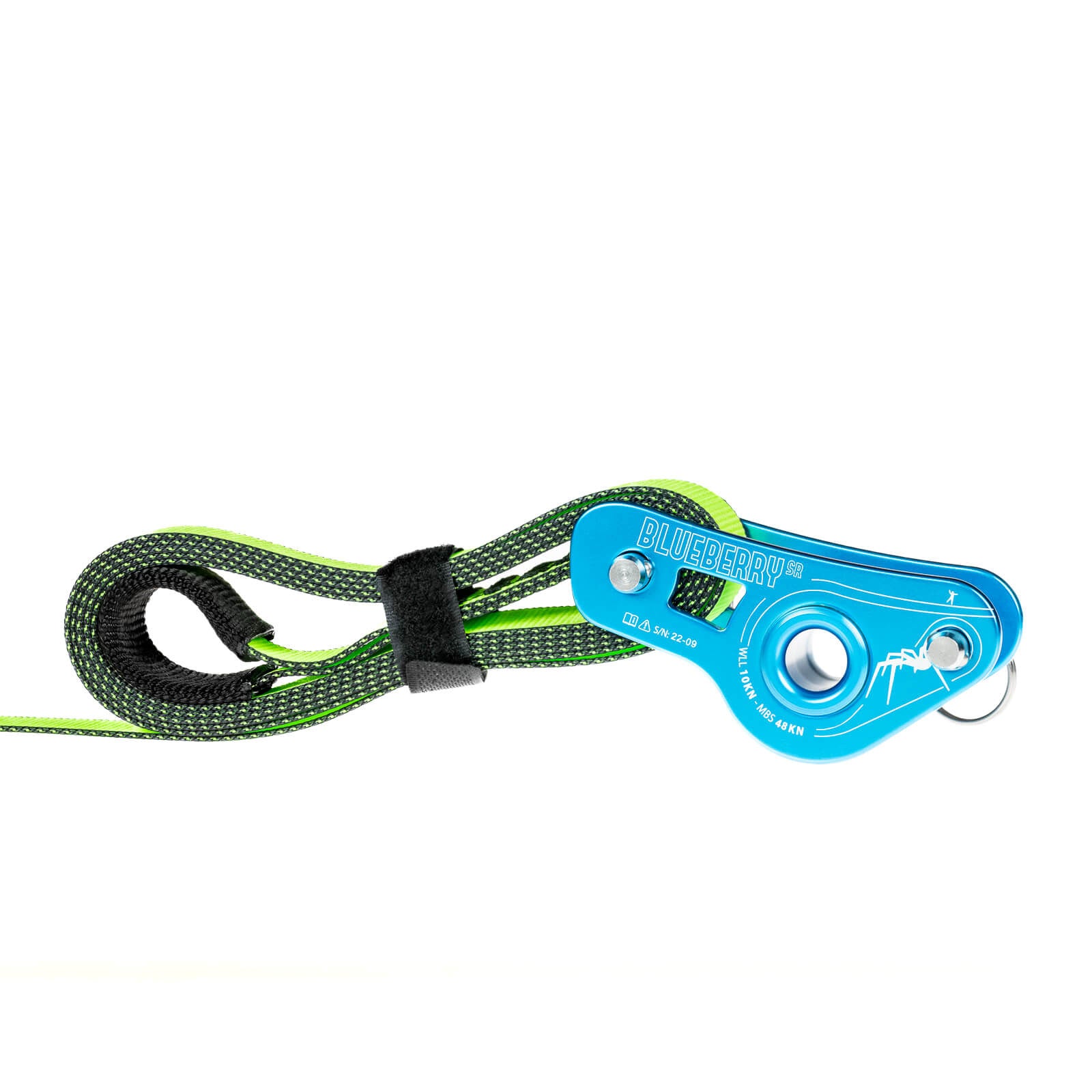

You can also connect the second pin directly to a sling without using a Soft Release, but ensure the sling exits the linelock straight to avoid tri-loading.

Tensioning with a Dyneema Sling

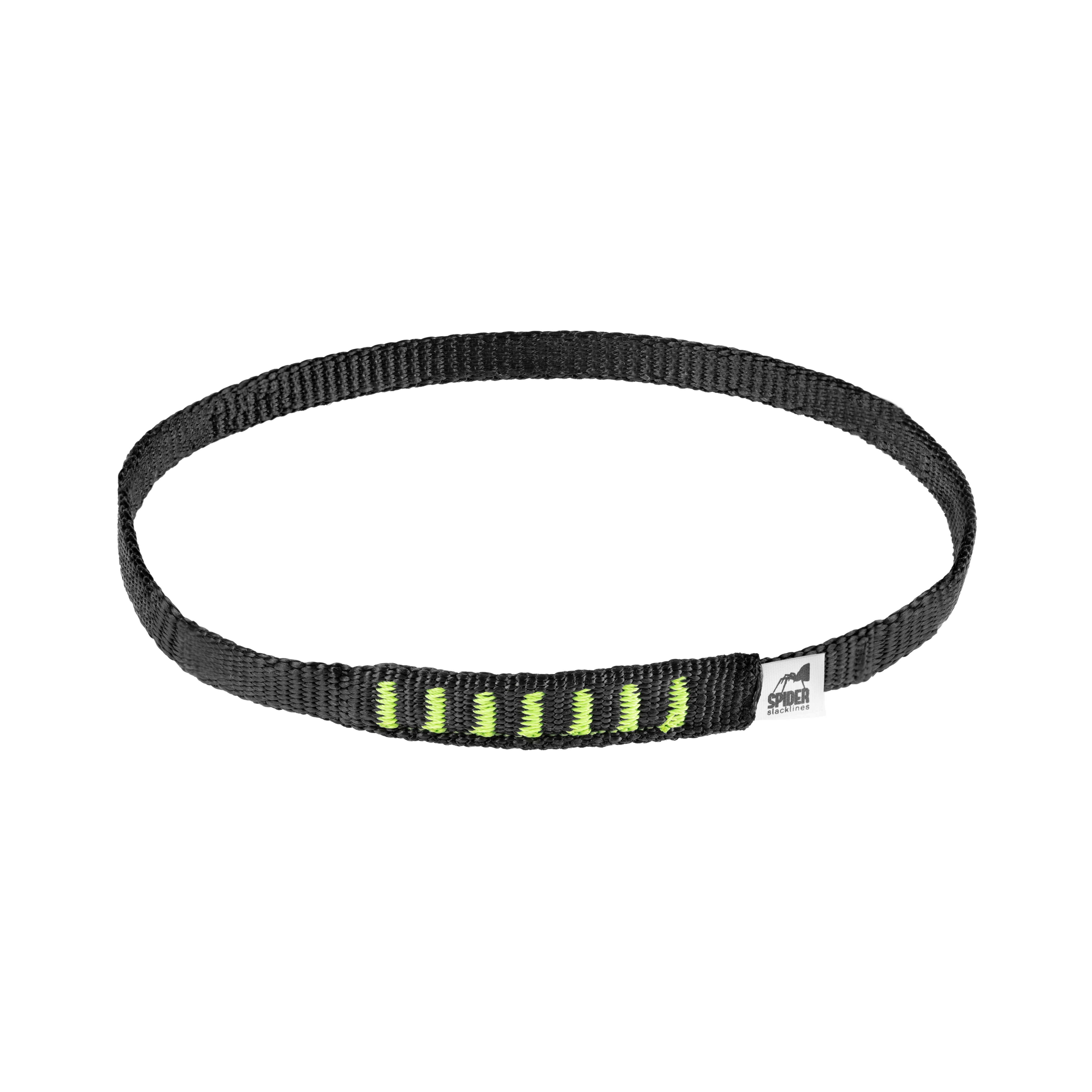

Optimize the BLUEBERRY diverter with a Dyneema webbing sling to create a buckingham tensioning system.

Connect our ROLLEX to the BLUEBERRY to form a pulley system with your slackline.

Warnings

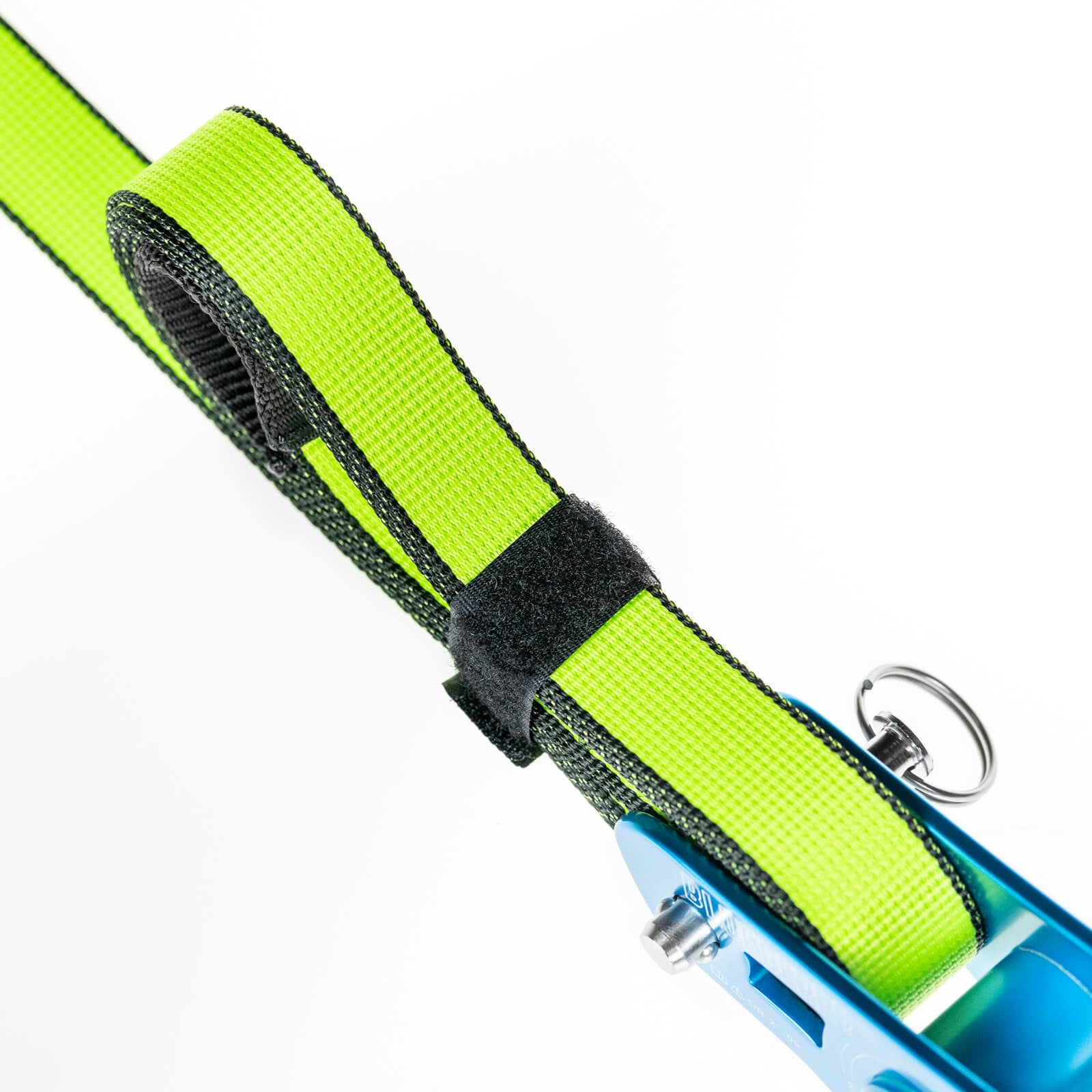

Always make sure to safely secures the slackline tail once tensioned and set up. Experience has shown that strong winds or intensive use can cause a loose tail to derail the line from its weblock.

ATTENTION: Any weblock should be always used with secure ANTI-SLIP KNOT on the webbing tail. A properly tied ANTI-SLIP KNOT is best to learn from other, more experienced slackliners, as it may vary, depending on the type of weblock used.

Safety first

The BLUEBERRY SR is not a PPE product. Before setting up a line for the first time with our BLUEBERRY SR, read carefully the instruction manual.

Product details

Data sheet

TOTAL WEIGHT

125 g (4,41 oz.)

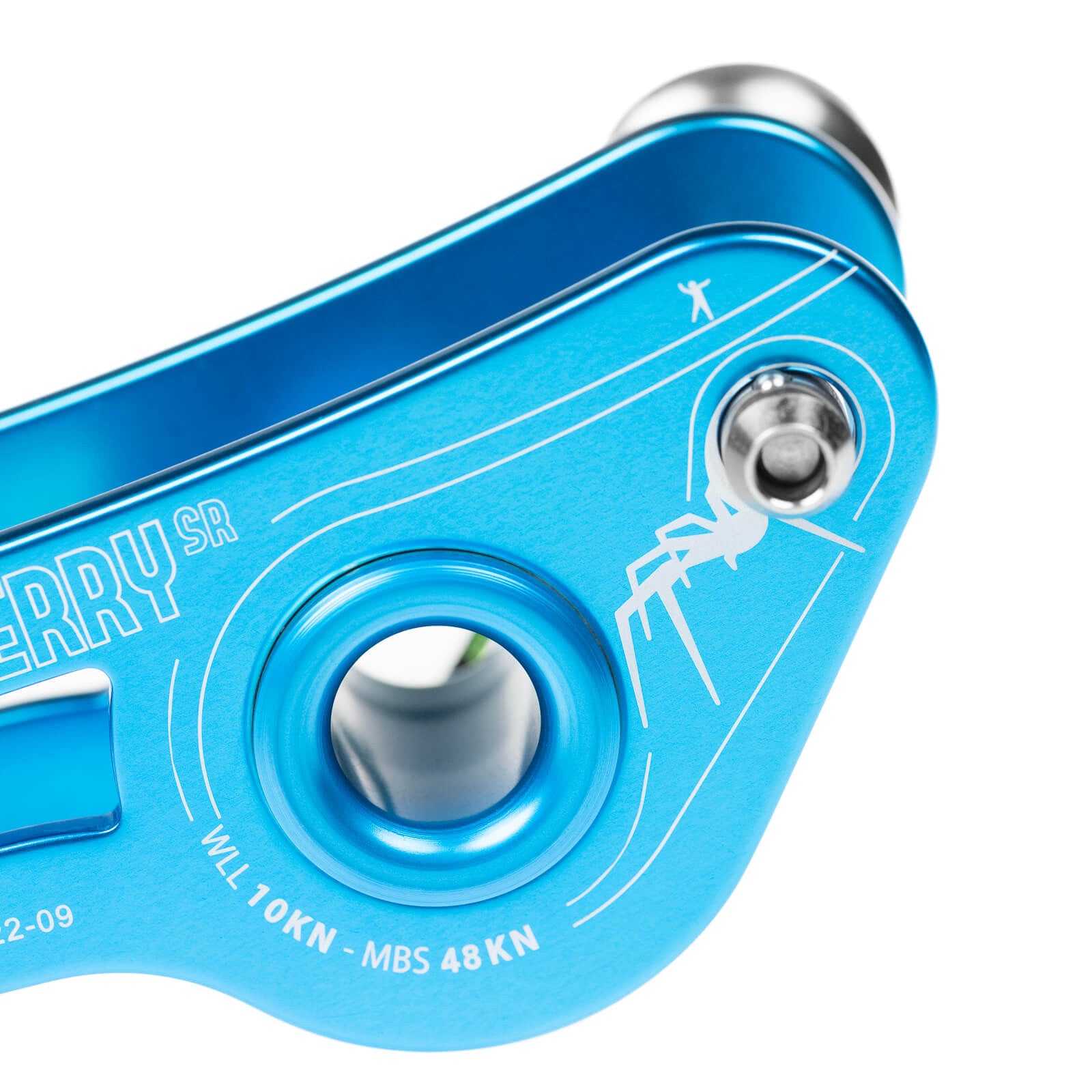

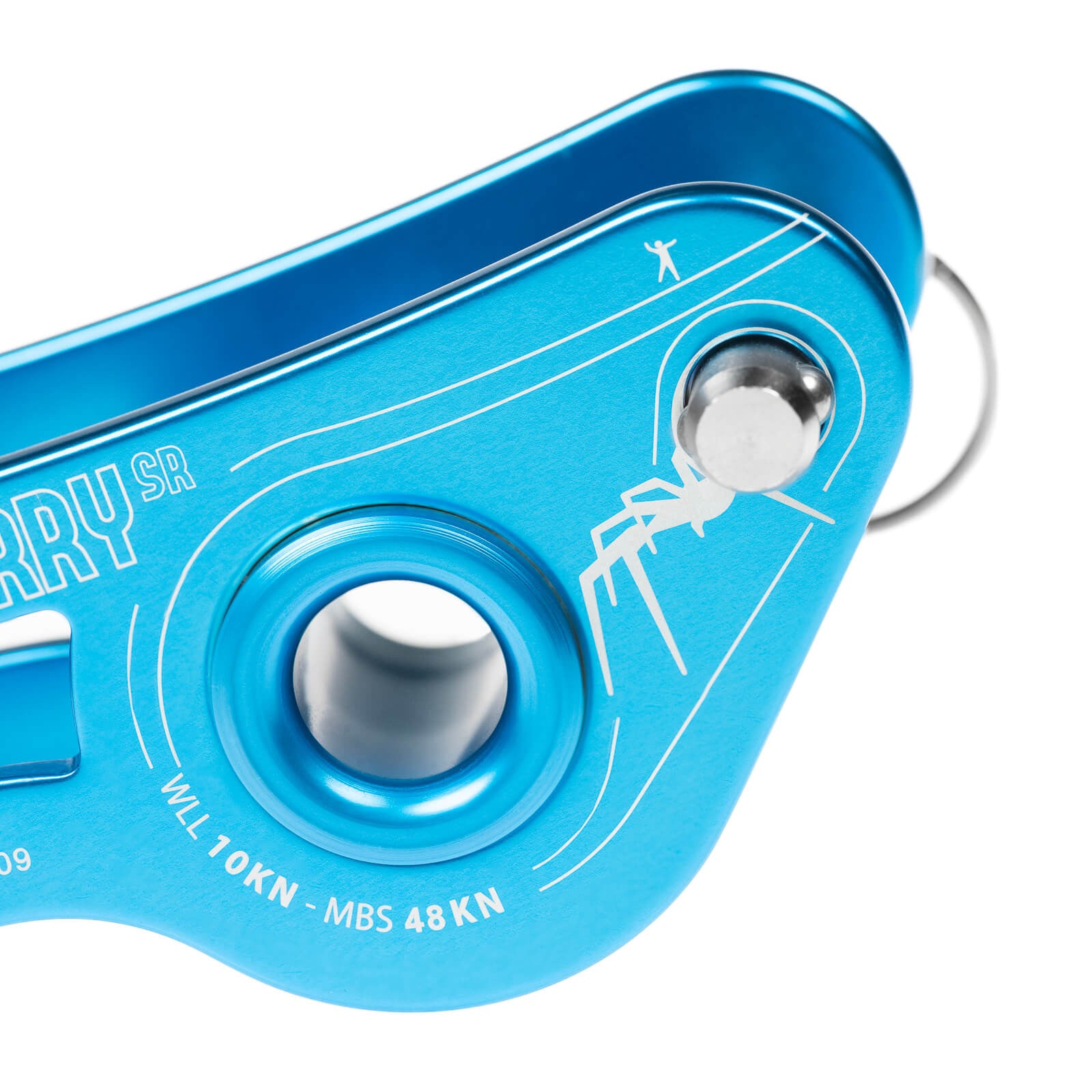

WLL - WORKING LOAD LIMIT

10 kN

SUGGESTED CONNECTOR

2,2T BOW SHACKLES STAINLESS STEEL

MINIMUM BREAKING STRENGTH

48 kN
