OVAL QUICK LINKS

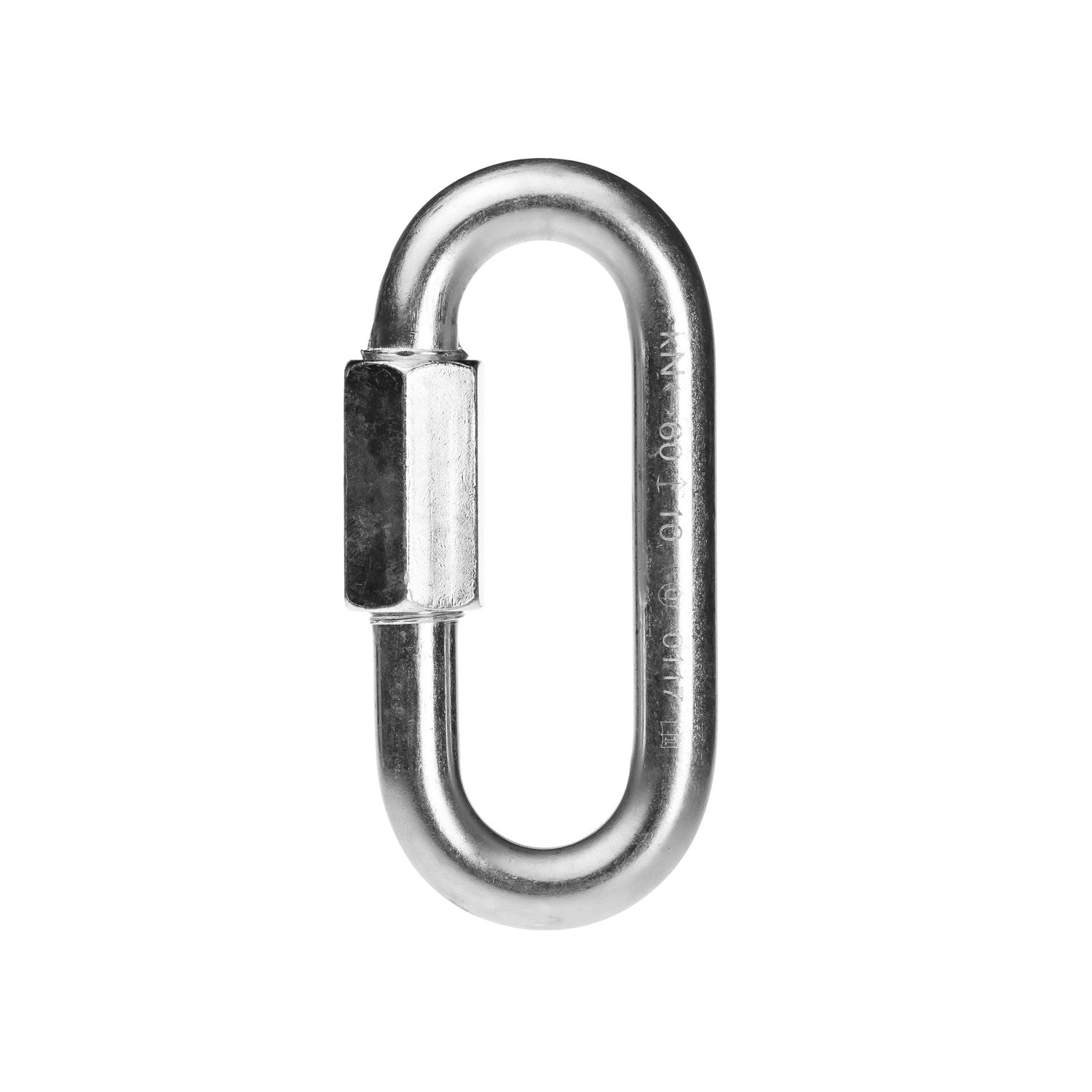

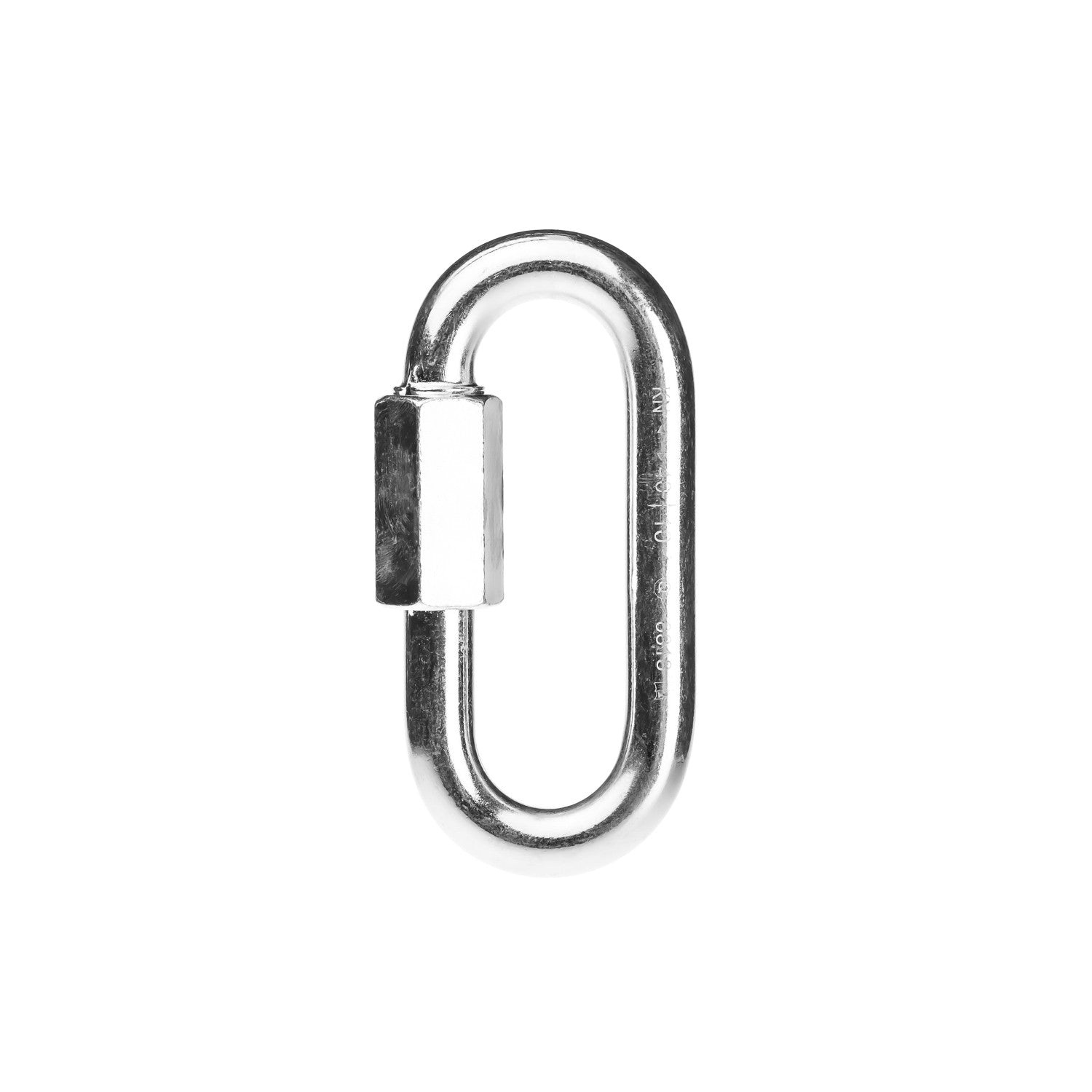

Oval quick links of zinc coated steel

The oval shape and smooth surface make it a universal connector for slacklines, longlines and highlines.

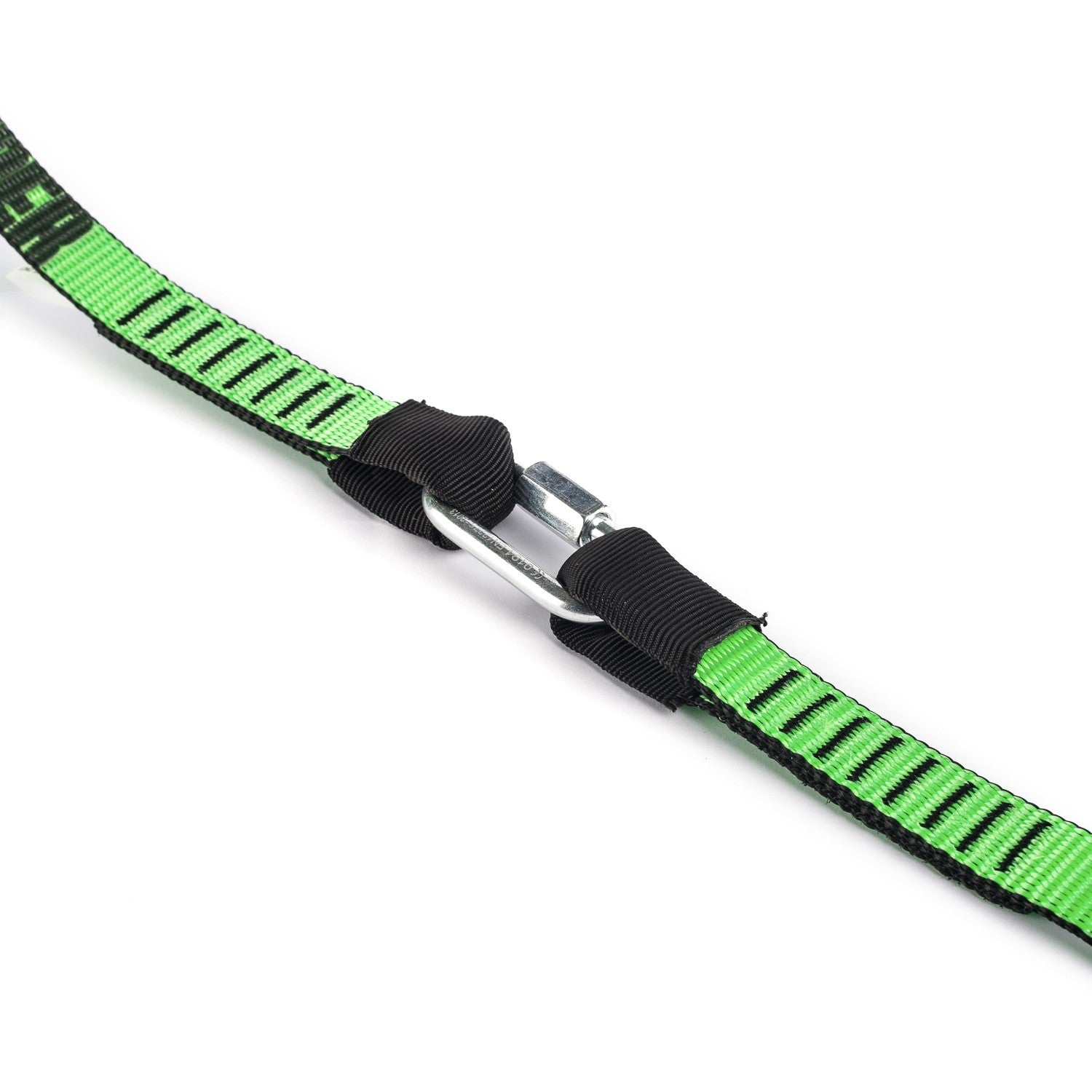

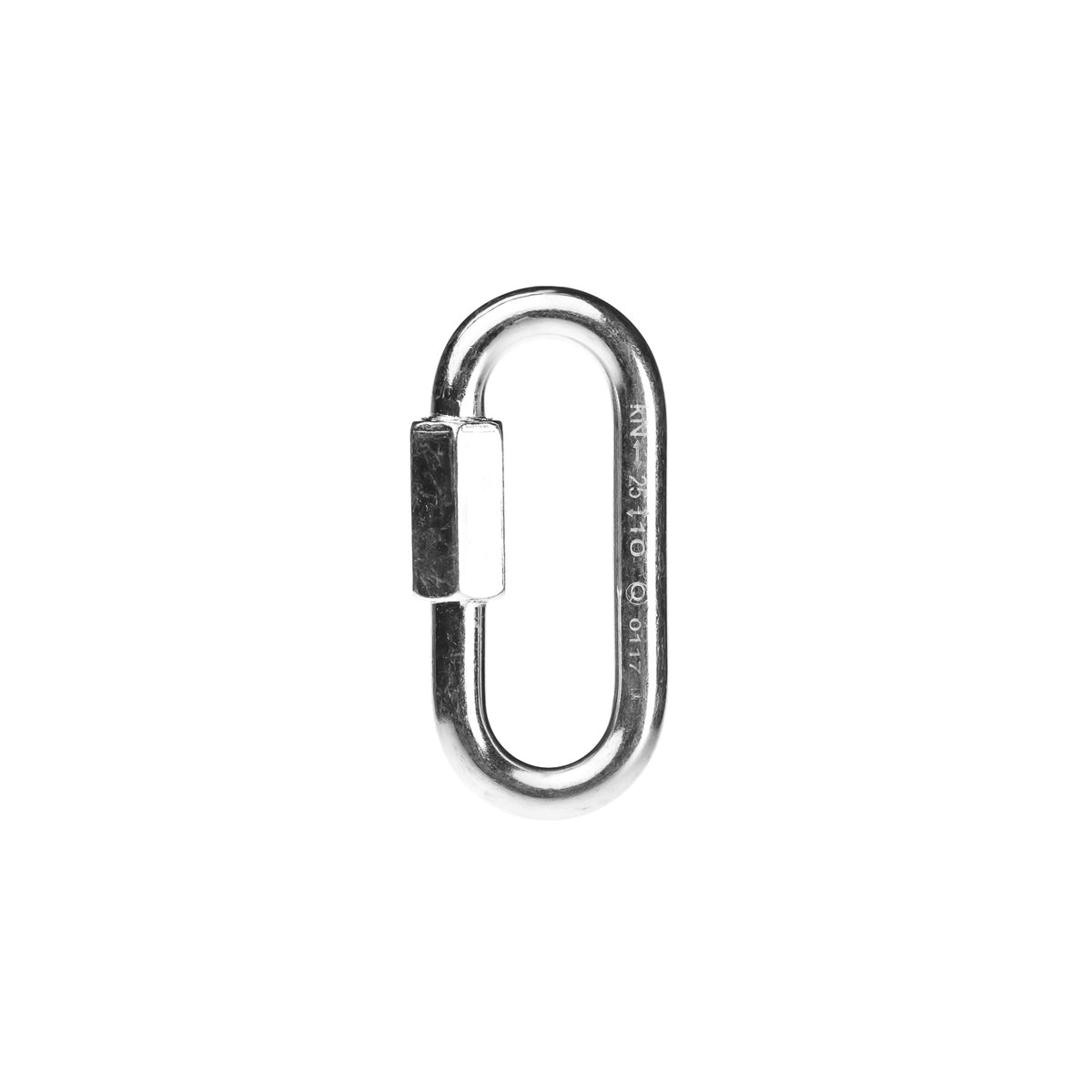

• 8 mm 25 kN: great to connect abrasion sensitive gear, like webbing sewn loops;
• 10 mm 40 kN: to connect almost all your different types of gear: linelocks, pulleys, backups, slings and multi point rock bolt anchors.

Quick links

A quick link is a cheaper and smaller connector than a carabiner, but at the same size it is much stronger. The quick link is a perfect connector for anything that is meant to be permanently installed, unlike a carabiner, which is meant to be opened and closed repeatedly.

Oval quick links of galvanized steel

These quick links are made of steel and are galvanized to prevent corrosion and oxidation when remaining in humid environments. In salty marine environments, it is necessary to choose stainless steel quick links.

OVAL quick links

Designed to work in linear loads, and also available in a twisted version to connect elements rotated by 90°, these quick links are an alternative to carabiners and an excellent connector inside a pulley system or for a highline set-up.

Frequent use:

• To connect a static rope with a knot to a fixed part of a pulley system;
• To connect to an anchor plate;
• To connect a static rope to rock anchor plates for a highline set-up (with a round sling, we recommend Delta quick links);
• To connect the backup line of a highline to the splitting points (T-Loop or Fractio);
• To connect the sewn loops of a main highline.

Occasional use:

• To connect a round sling spanset to a pulley or to a linelock;
• Together with a shackle it can become the lock pin of a linelock for a slackline.

Do NOT use for:

• Tricklines;
• Equalized slings in a tri-load set-up.

Technical sheet

Warnings

Always check that you have closed the quick links before use. If you forget to close them, they may bend quickly when under tension. For a permanent safety lock, they must be closed with a wrench. It is possible to use tape around the quick link if you intend to increase safety by leaving them permanently locked. Finger pressure is sufficient to use it as a semi-permanent connector.

When you have finished using it, keep the quick link screw closed even when at rest. If it is not used for a long period and is exposed to open air, dust or atmospheric agents, the nut could get stuck permanently.
