SLACKIMOUFLE QUAD 9:1 PULLEY SYSTEM
Tax excluded. Shipping calculated at checkout
SLACKIMOUFLE QUAD 9:1 PULLEY SYSTEM
Our SLACKIMOUFLE is a pulley system optimized to give maximum mechanical advantage in the most compact package for longline, highline, and trickline use.
A strong, efficient, and reliable pulley system.

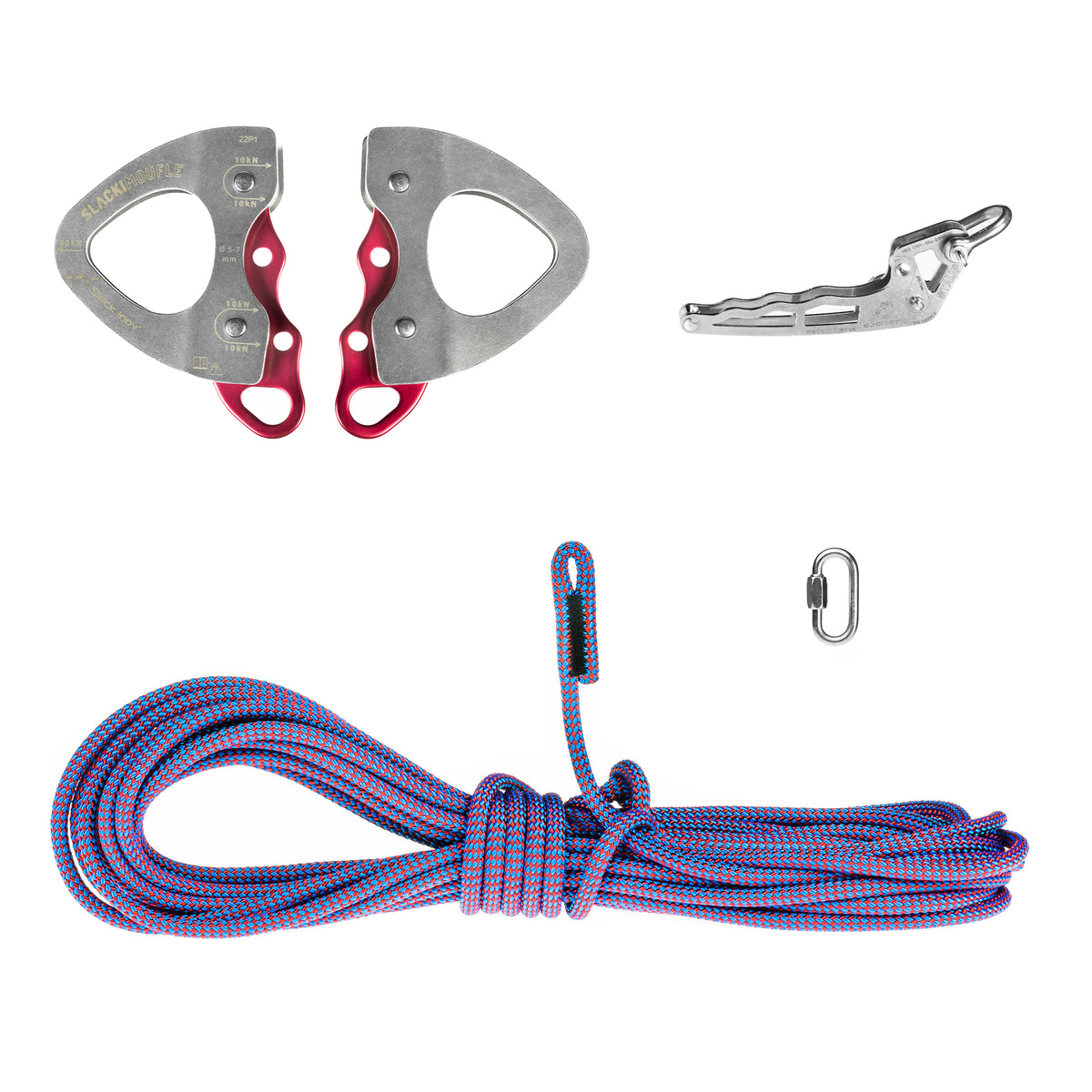

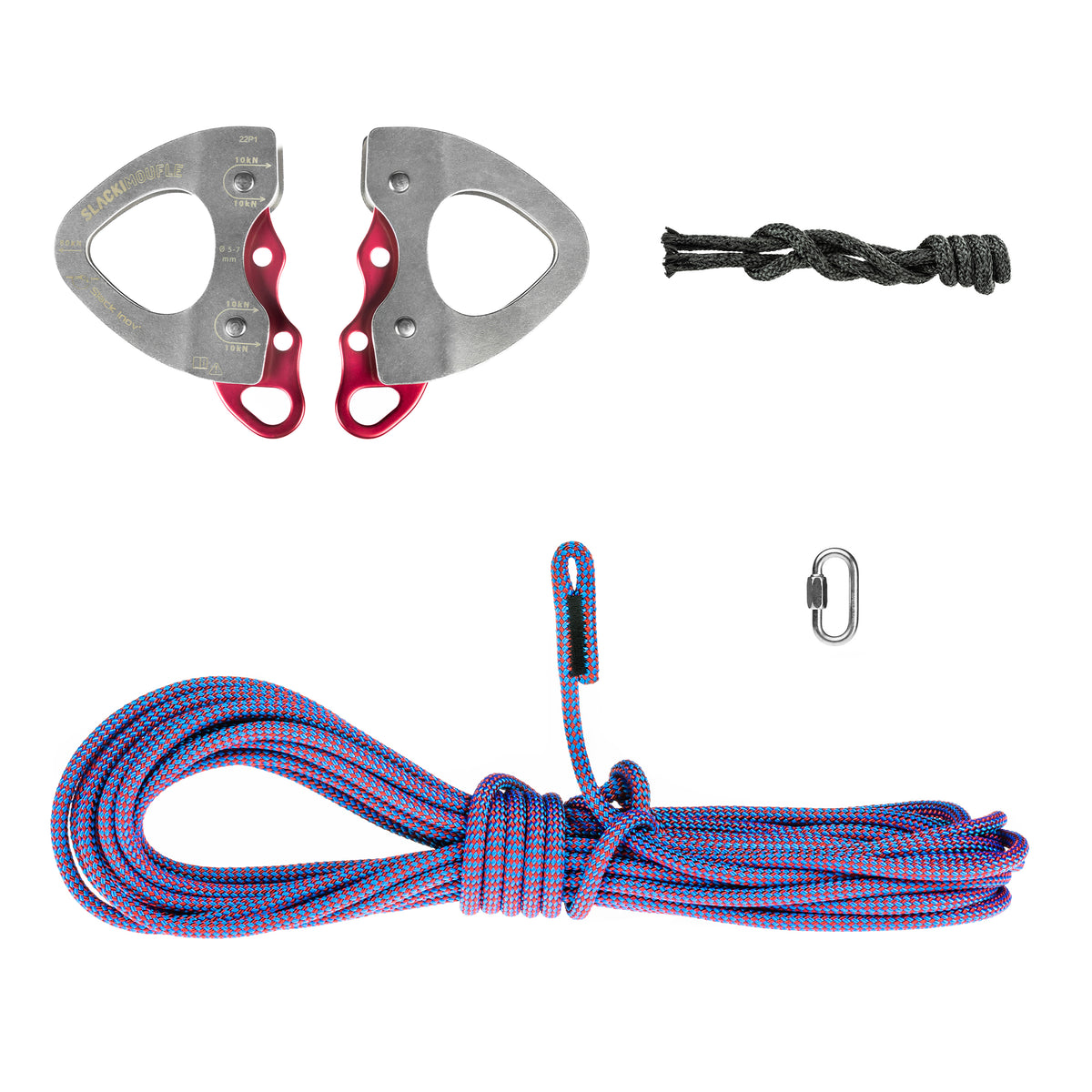

Pulley System Contents:
- 1x SET SLACKIMOUFLE PULLEY - Compatible connectors: shackles Ø8-Ø16 mm in both directions, shackles Ø16-Ø20 on the pin, Quicklinks Ø8-Ø20, every symetrical EN 12275 carabiner;
- 1x 5 MM OVAL QUICK LINK DPI
- 1x K2 LOW STRETCH ROPE Ø6 mm - select length
- 1x STAUP BRAKE with 6mm U shackle or 1x BLACKBRAKE for Valdôtain tressé knot
If you do not already own an appropriate multiplier, think about completing your system with a Multiplier PULLEY + SPECIAL KNOTTED ROPE.
Can I set up a 100m Longline with a 25m rope?
The length of the longline you can set up with this pulley system depends on: the line's stretch, the landscape (flat or with a bowl), and on your tension preferences (low tension <5 kN or high tension <12 kN).
With a webbing like the FLY LINE, you can manage to rig up to:
- 75m long slackline with 25m of rope;
- 150m long slackline with 25-50m of rope, depending on the stretch of the webbing;
- 300m long slackline with 50m of rope + Line Grip or other line grabbing device.
The Brake Technology: Intuitive STAUP Brake vs Innovative BLACKROPE

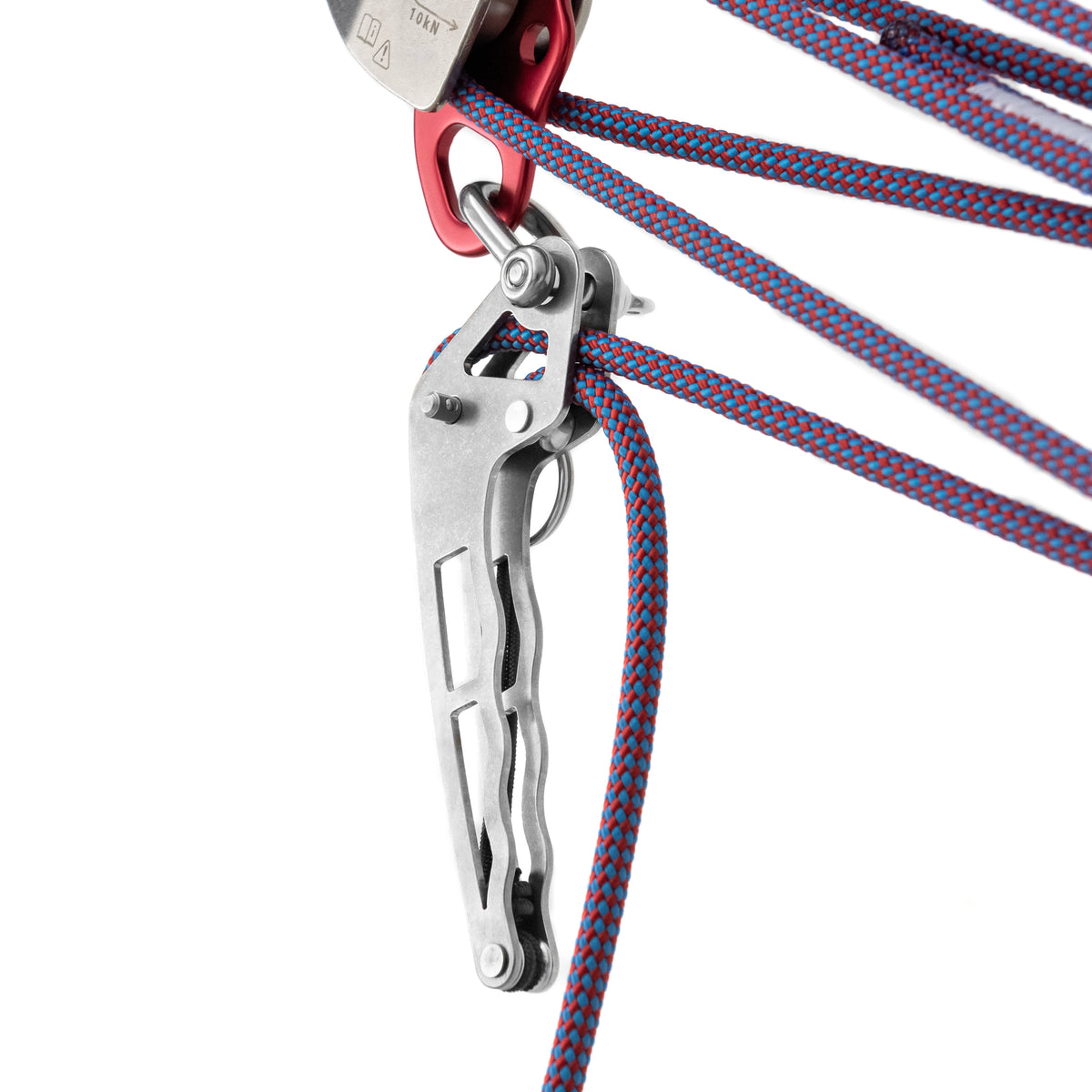

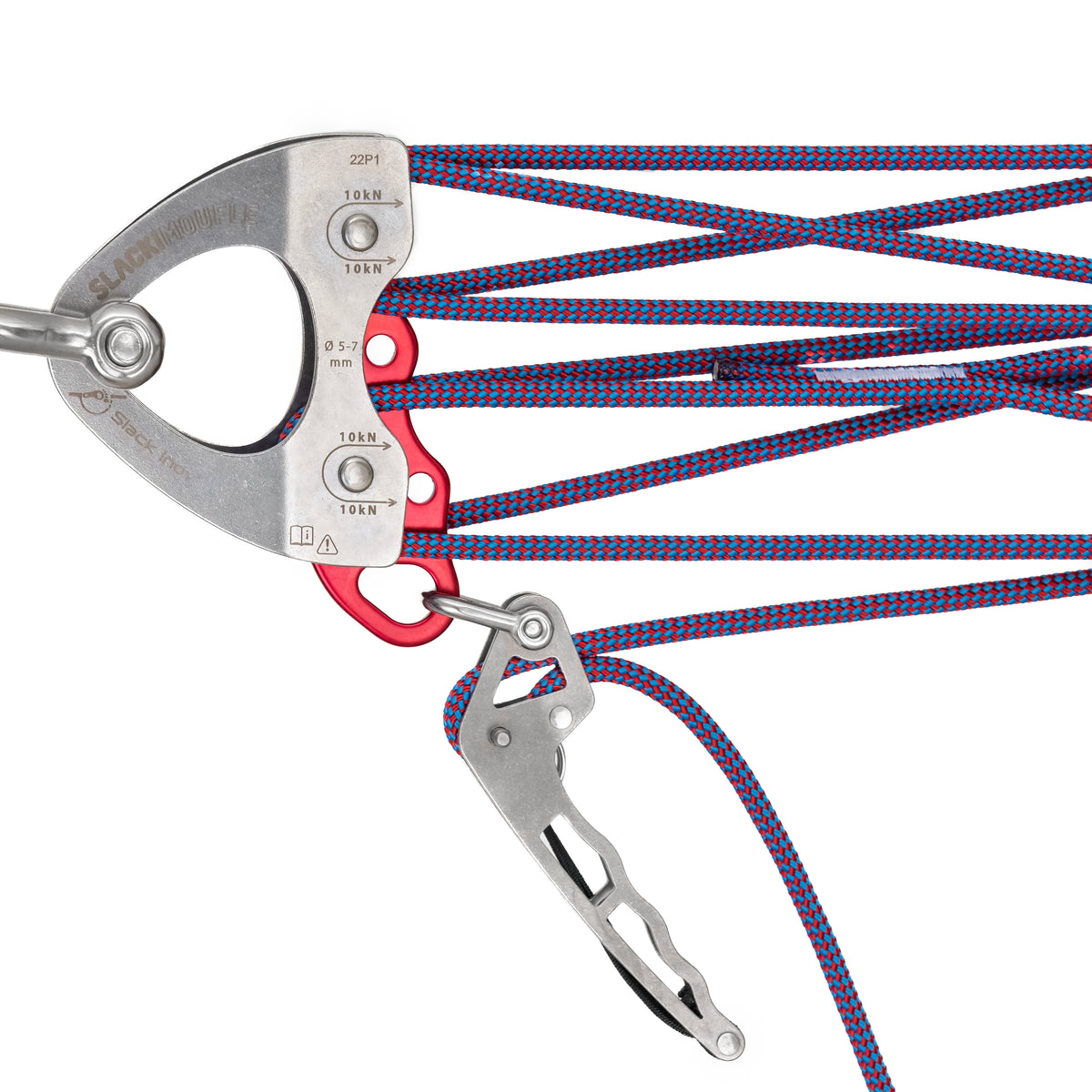

If you are not into knots, the STAUP brake is your excellent choice. Extremely intuitive and easy to release tension even under high loads; it functions much like the Mammut Smart or ATC Pilot belay devices.

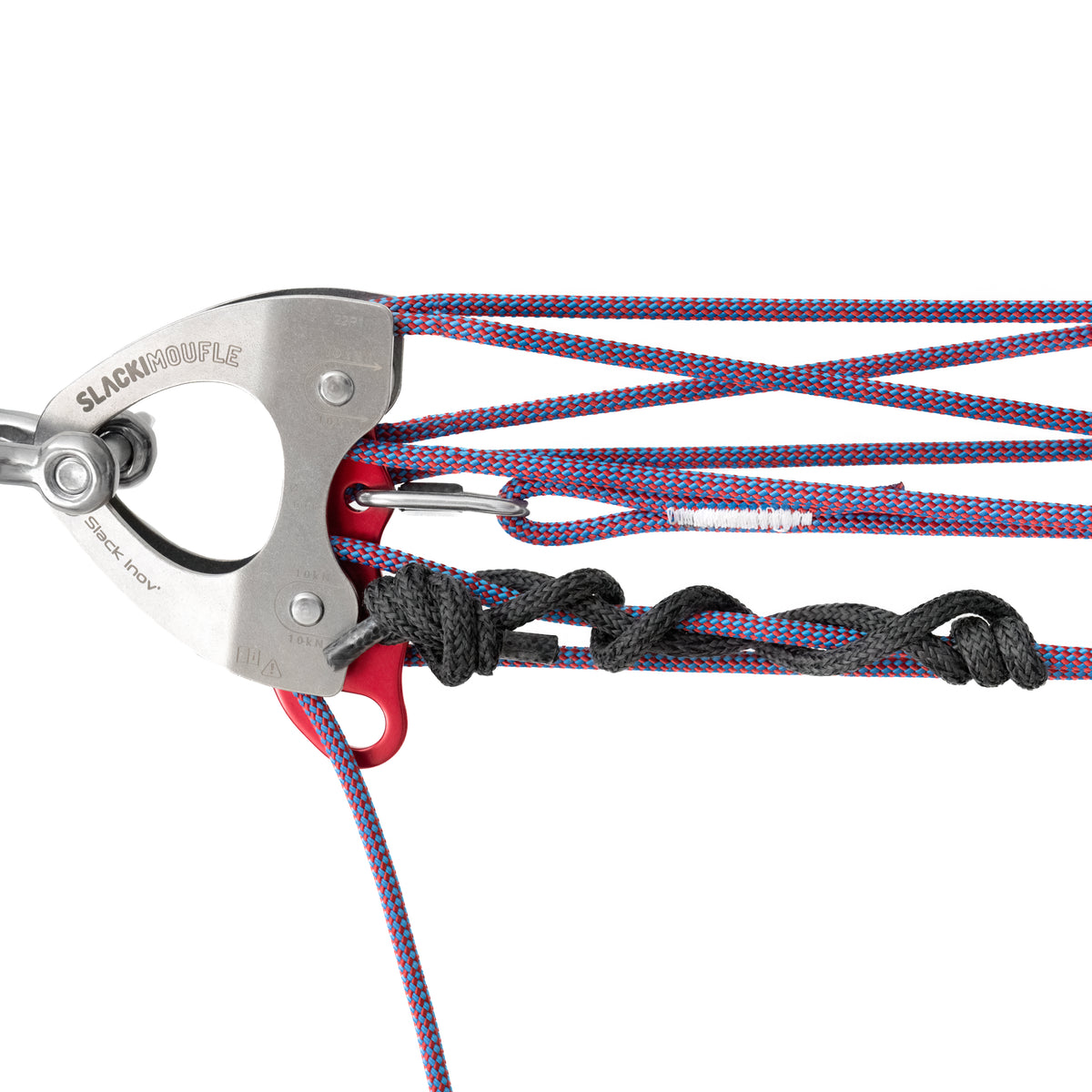

If you are looking for something lighter, the integrated BLACKBRAKE connection eye in the pulley allows to create a system with excellent efficiency thanks to the redirection of the rope happening on ball bearings. Unlike a cam system, the BLACKBRAKE knot allows you to tension and de-tension easily. It also preserves 95% of the rope's breaking strength.
Should I add a multiplier?
The multiplier is necessary to increase your power ratio to 3:1. With a multiplier, you can reach higher tensions without anyone elses help. The multiplier is an aluminum alloy pulley with a self locking knot like a prusik that attaches to the rope. Our multiplier is the CAMP TETHYS LOW FRICTION BEARINGS pulley.
ATTENTION
This is only the pulley system. You will need to purchase webbing, anchor material, and other connectors seperately on our shop.
